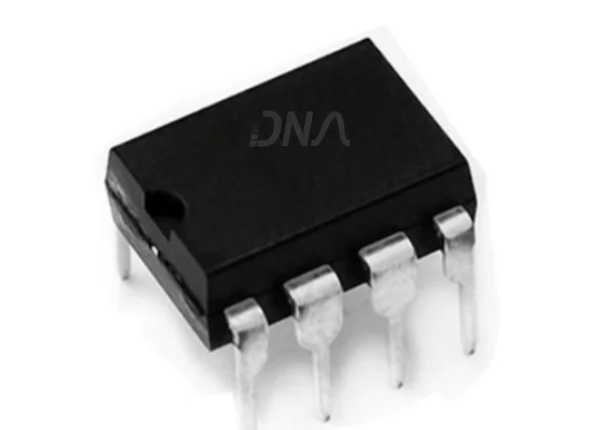

DP2539 DIP8 PWM Power Switch IC

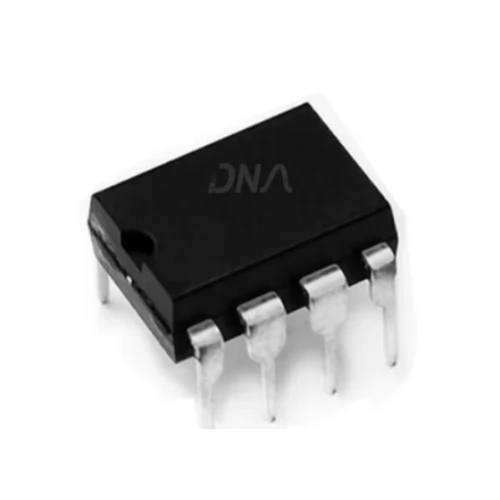

DP2539 DIP8 PWM Power Switch IC

DP2539A is a high performance offline PWM power switch for low power AC/DC charger and adapter applications. It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated. High Precision Constant Voltage (CV) and Constant Current (CC) control are integrated as shown in the figure below.DP2539A offers comprehensive protection coverage with auto-recovery features including Cycle-by-Cycle current limiting, VDD Over Voltage Protection (VDD OVP), short circuit protection, built-in leading edge blanking, VDD under voltage lockout.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• ± 5% Constant Voltage Regulation and Current Regulation at Universal AC Input


• Primary Side Regulation (PSR) Without TL431and Opto-coupler


• No Need for Control Loop Compensation


• Programmable CV and CC Regulation


• Multi-Mode PWM/PFM Operation


• Output Short Load Protection


• Less than 75mW Standby Power


• Built-in Line Voltage and Primary Winding Inductance Compensation


Applications of DP2539 PWM Power Switch IC

• Low Power AC/DC offline SMPS for


• Cell Phone Charger


• Digital Camera Charger


• Small Power Adapter


• Auxiliary Power for PC, TV etc.


• Linear Regulator/RCC Replacement


Package Includes

• 1 x DP2539 PWM Power Switch IC
