DWIN USB to FFC 10pin 1.0mm adapter board HDL662B LCM LCD MODULE DEBUGGING INTERFACE

USB to FFC 10pin 1.0mm adapter board HDL662B LCM LCD MODULE DEBUGGING INTERFACE

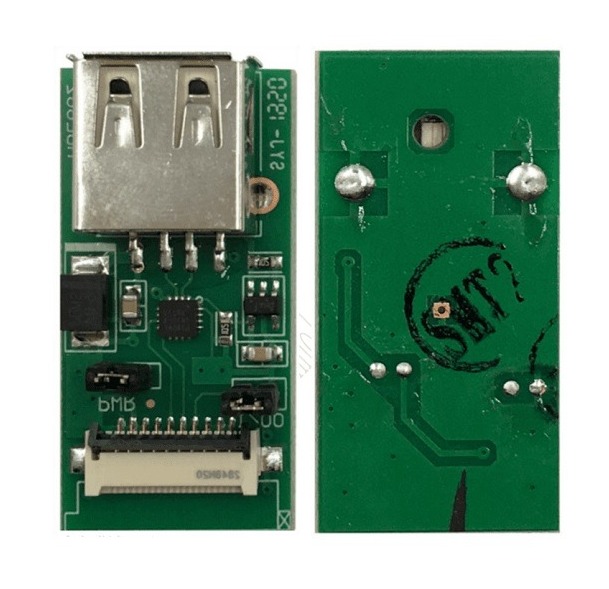

The DWIN HDL662B Adapter Board is used to debug the LCM LCD Modules / LCD displays. The board has a USB connector on one side and 10 pins 1mm pitch FFC connector on the other side. Users can connect it through the USB interface directly to a PC without an additional power supply. A 10PIN FFC cable is needed to connect the PC and USB adapter plate when using DWIN C-series products. Tags, USB to FCC 10Pin 1.0mm Adapter Board HDL662B, DWIN USB to connecting line Adapter, HDL662B USB to Serial FFC Adapter for DWIN HMI LCDs, HDL6628 Board, HDL662, board hdl662b single USB, 1.0mm USB to FCC adapter board, HDL6628 USB to TTL Converter, USB to FCC 10Pin 1.0mm adapter board HDL662B.

DNA solutions, Nashik has various types of Adapter Board's. Check out our complete collection of Adapter Board's.

• USB to FFC Conversion: Facilitates easy interfacing between USB and LCM/LCD modules with a 10-pin FFC connector.


• 10-Pin FFC Connector: The FFC connector has a 1.0mm pitch, making it compatible with various small-sized LCD or LCM modules.


• Compact Design: The adapter board is small and compact, allowing it to fit in development setups without taking up too much space.


• Plug-and-Play: Easy to use with minimal setup, allowing for fast debugging and testing.


• USB Power Supply: The adapter can be powered through the USB port, eliminating the need for external power sources.


Specifications of USB to FFC 10pin 1.0mm adapter board HDL662B LCM LCD MODULE DEBUGGING INTERFACE

• Input Interface: USB Type-A (can be connected to a PC or other USB host devices)


• Output Interface: 10-pin FFC connector with 1.0mm pitch


• FFC Connector Pinout: Matches common LCM/LCD modules


• Power Supply: Powered via USB port


• Operating Voltage: 5V DC (from USB)


• Dimensions: Small, compact form factor designed for easy integration


Package Includes

• 1 x USB to FFC 10pin 1.0mm adapter board HDL662B LCM LCD MODULE DEBUGGING INTERFACE
