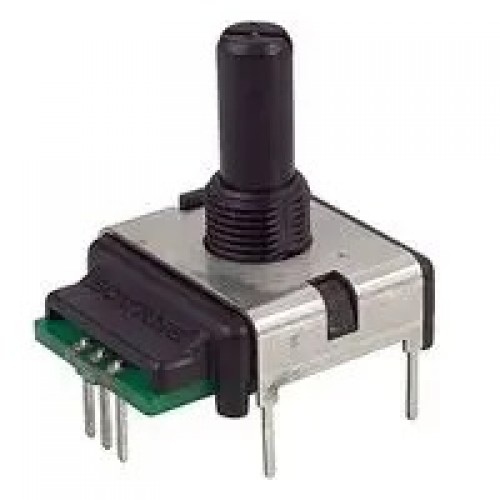

ECW1J-R19-AC0024L Digital Contacting Encoder (Bourn make)

ECW1J-R19-AC0024L incremental encoder Bourn make

The ECW1J-R19-AC0024L is a high-quality, rotary incremental encoder that provides precise feedback on rotational position and speed. It converts rotational motion into a series of electrical pulses, which can be counted to determine the relative position of a rotating object. This model is suitable for use in various industrial applications, including motor control, robotics, and automation systems.

DNA solutions, Nashik has various types of Encoder's. Check out our complete collection of  Encoder's.

• Compact Design: Offers a small form factor, making it easy to integrate into tight spaces.


• High Resolution: Provides 24 pulses per revolution (PPR), ensuring accurate position feedback.


• Durability: Built with robust materials for long-lasting performance in demanding environments.


• Detent Mechanism: Incorporates a detent for tactile feedback, ensuring precise manual adjustments.


• Smooth Rotation: Designed for smooth, reliable rotation without mechanical noise.


Specifications of ECW1J-R19-AC0024L incremental encoder Bourn make

• Resolution: 24 pulses per revolution (PPR)


• Operating Voltage: 5V DC (typical)


• Output Signal: Two-phase quadrature output (A and B channels) for direction sensing


• Mechanical Angle: 360° continuous rotation


• Shaft Type: Round shaft with a diameter of 6 mm


• Maximum Operating Speed: Up to 60 RPM (Revolutions Per Minute)


• Output Type: Open collector output with pull-up resistors


Package Includes

• 1 x ECW1J-R19-AC0024L incremental encoder Bourn make
