PC817 - EL817 Optocoupler in SOP-4 Package

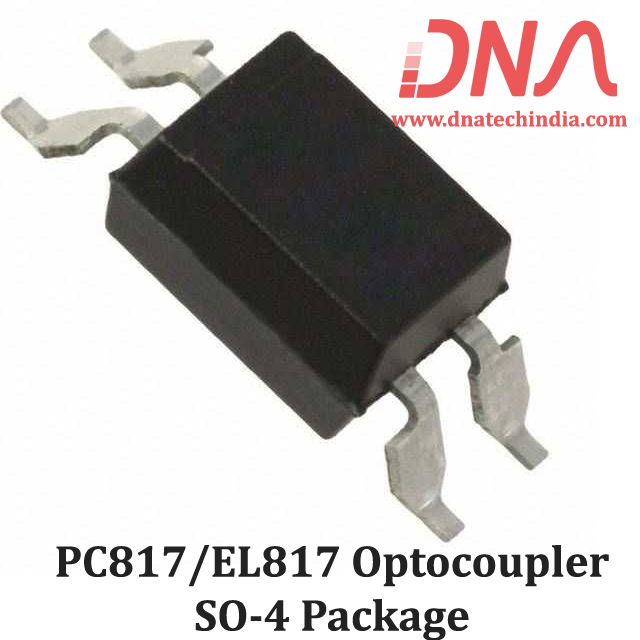

PC817 (EL817) Transistor Output PhotoCoupler in SOP-4 SMD package

The PC817/EL817 is a SMD Transistor Output Optocoupler is a 1-channel 4-pin Transistor Output Photocoupler contains an IRED optically coupled to a phototransistor. It is suitable for programmable controllers and facsimiles.

DNA Solutions has various types of Photocouplers, Optocouplers and optoisolator IC's. Check our complete collection of Photocouplers, Optocouplers and optoisolator IC's.

Features of PC817/EL817 Optocoupler

• 10 to 20mA Collector current.

• 50mA Forward current.

• 6V Reverse voltage.

• 200mW Total power dissipation.

• Applications: Communications & Networking, Industrial.

Specification of PC817/EL817 Photocoupler

• Mounting Type : Through Hole

• No. of Output : 1

• Rise Time : 4μs

• Fall Time : 3μs

• Operating Temperature Range (°C) : -30 to 100

• Dimensions in mm (LxWxH) : 7.13 x 4.85 x 3.41

• If - Forward Current : 20 mA

• Maximum Collector Emitter Voltage : 80 V

• Maximum Collector Current : 50 mA

• Isolation Voltage : 5000 Vrms

• Maximum Collector Emitter Saturation Voltage : 0.2 V

• Vf - Forward Voltage : 1.2 V

• Vr - Reverse Voltage : 6 V

• Pd - Power Dissipation : 200 mW

Related Links

• PC817 Optocoupler IC explained
