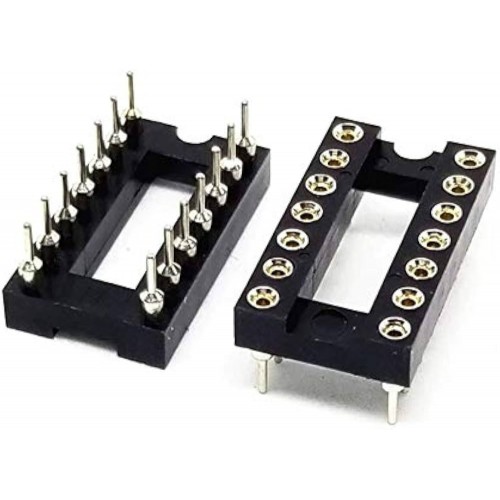

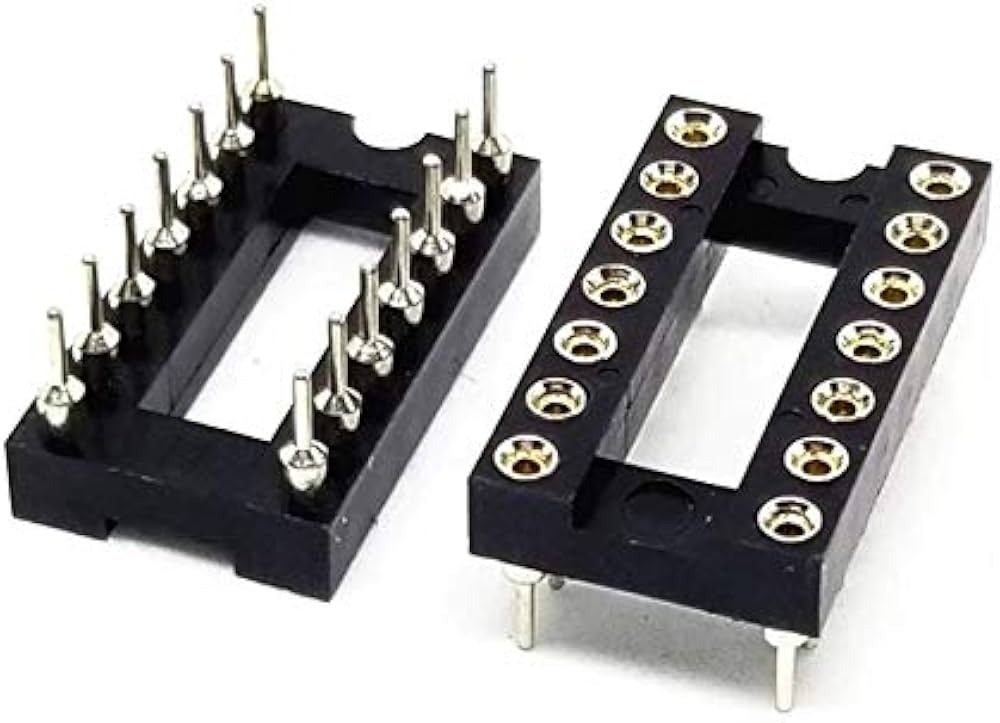

14 PIN NARROW SIL ROUND PIN IC BASE SOCKET

14 PIN NARROW SIL ROUND PIN IC BASE SOCKET

A 14-pin narrow SIL (Single In-Line) round pin IC base socket is a socket designed to hold a 14-pin integrated circuit (IC) in place on a printed circuit board (PCB) while providing a secure connection. Round pins designed for SIL (Single In-Line) applications. Narrow body, meaning the rows of pins are close together, typically with 7 pins on each row. Often made of brass or phosphor bronze, with gold or tin plating to ensure reliable conductivity and corrosion resistance. Dual-wipe contacts for better grip and connection to the IC pins. Through-hole type for easy insertion into the PCB. The round pins fit snugly into corresponding holes on the board. This socket provides a removable connection for ICs, allowing for easy replacement or swapping of ICs without damaging the PCB or the IC itself.

DNA solutions, Nashik has various types of IC Socket's. Check out our complete collection of IC Socket's.

• No. of Pins: 14 pins.


• Tin-Plated Leads


• High Quality

• Excellent Insulation Resistance


• High Precision Type


• Easy for IC Removal and Insertion.


Specifications of 14 PIN NARROW SIL ROUND PIN IC BASE SOCKET

• Current Handling Capacity :3A


• Connector Type : DIP Socket


• Contact Material Phosphor Bronze


• Contact Plating : Tin


• Operating Temperature Range :-25°C to 85°C

• Type :   Round IC Base


Package Includes

• 1 x 14 PIN NARROW SIL ROUND PIN IC BASE SOCKET
