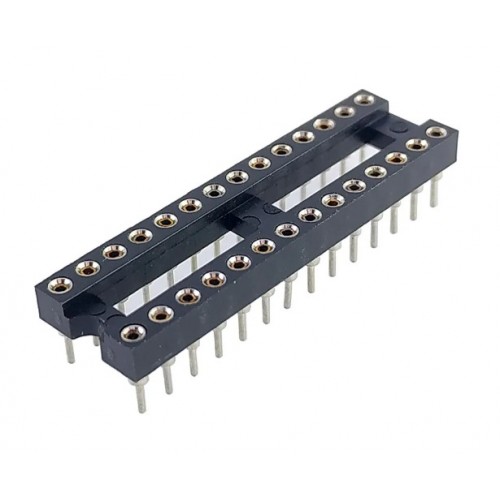

28 PIN NARROW SIL ROUND PIN IC BASE

28 PIN NARROW SIL ROUND PIN IC BASE

A 28-pin narrow SIL (Single In-line) round pin IC base is a socket designed to hold integrated circuits (ICs) securely while facilitating easy insertion and removal without soldering directly to the IC. These sockets are typically used in electronic prototyping, circuit boards, and embedded systems to reduce wear and tear on IC pins and to provide a reliable electrical connection.

DNA solutions, Nashik has various types of IC Base. Check out our complete collection of  IC Base.

• 28 Pins Configuration: Designed to accommodate ICs with 28 pins in a narrow package format

• Round Pin Design: Ensures better contact and reduced pin insertion force, making it durable

• Single In-line (SIL): All pins are aligned in a single row, suitable for narrow DIP (Dual In-line Package) ICs

• Durable Material: Made of high-temperature resistant plastic housing and high-conductivity metal contacts

• Precision Socket Contacts: Provides reliable and secure connectivity with IC pins

• Compact Design: Compatible with standard PCB footprints for 28-pin narrow DIP ICs

Specifications of 28 PIN NARROW SIL ROUND PIN IC BASE

• Number of Pins: 28

• Pin Type: Round pin

• Pitch (Distance Between Pins): Standard 2.54 mm

• Temperature Range: -55°C to +125°C

• Insertion Force: Typically low to prevent IC pin damage

• Current Rating: Generally 1A or less per pin

• Voltage Rating: Typically up to 250V

Applications of 28 PIN NARROW SIL ROUND PIN IC BASE

• Prototyping and Development

• Repair and Replacement

• Circuit Protection

• Educational Projects

• Embedded Systems

Package Includes

      1 x 28 PIN NARROW SIL ROUND PIN IC BASE
