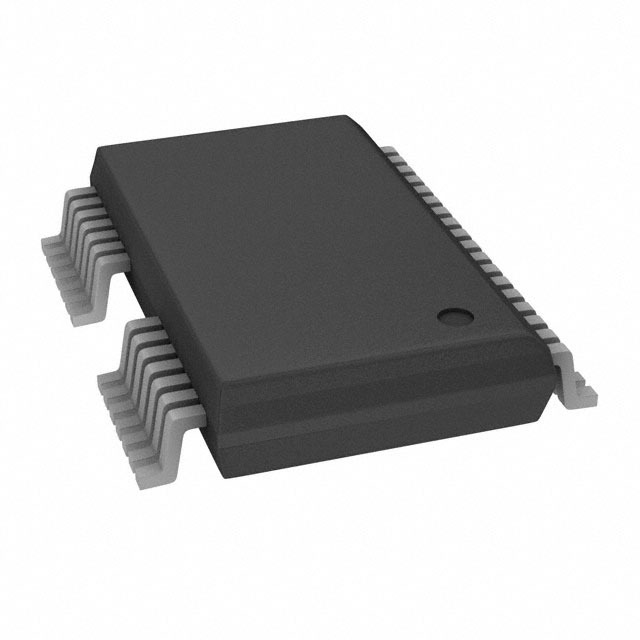

2ED020l12-F2 Dual IGBT Driver IC

2ED020l12-F2 Dual IGBT Driver IC

The 2ED020I12-F2 is a galvanic isolated dual channel IGBT driver in PG-DSO-36-58 package that provides two fully independent driver outputs with a current capability of typically 2A.All logic pins are 5V CMOS compatible and could be directly connected to a microcontroller. The data transfer across galvanic isolation is realized by the integrated Coreless Transformer Technology. The 2ED020I12-F2 provides several protection features like IGBT desaturation protection, active Miller clamping and active shut down.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• Dual channel isolated IGBT Driver


• For 600V/1200 V IGBTs


• 2 A rail-to-rail output


• Vcesat-detection


• Active Miller Clamp


Specifications of 2ED020l12-F2 Dual IGBT Driver IC

• Coreless transformer isolated driver


• Galvanic Insulation


• Integrated protection features


• Small footprint


• Suitable for operation at high ambient temperature


• AC and Brushless DC Motor Drives


Package Includes

• 1 x 2ED020l12-F2 Dual IGBT Driver IC
