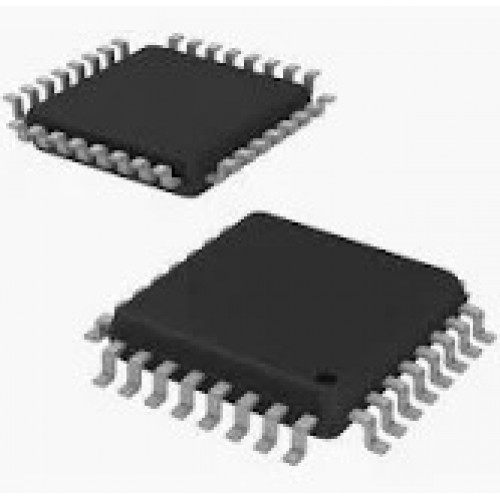

CH9344 USB to Quad Serial Ports Chip IC

CH9344 USB to Quad Serial Ports Chip IC

CH9344 is a USB bus converter chip, which converts USB to quad serial ports UART0/1/2/3, and used to expand serial ports for computer or upgrade directly from normal serial device or MCU to USB bus.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Operating voltage: 3.3V.


• High-speed USB 2.0 interface, peripheral components only need crystal and capacitor.


• Compatible with 16C550 UART with enhanced.


• Supports 5, 6, 7 or 8 data bits and 1 or 2 stop bits.


• Supports odd, even, none, space and mark parity.


• Supports RTS and CTS hardware automatic flow control.


• Supports half-duplex, supports RS485 switching in sending status, this function is enabled default.


Applications of CH9344 USB to Quad Serial Ports Chip IC

• Multi-port Serial Communication: Used in devices that require multiple serial ports, such as modems, routers, and communication hubs.


• Industrial Automation: Suitable for industrial control systems where multiple serial devices need to be connected and managed simultaneously.


• Embedded Systems: Ideal for microcontroller-based projects that require multiple UART interfaces.


• Test and Measurement Equipment: Useful in test setups that require multiple serial connections for data logging, monitoring, or control.


Package Includes

• 1 x CH9344 USB to Quad Serial Ports Chip IC
