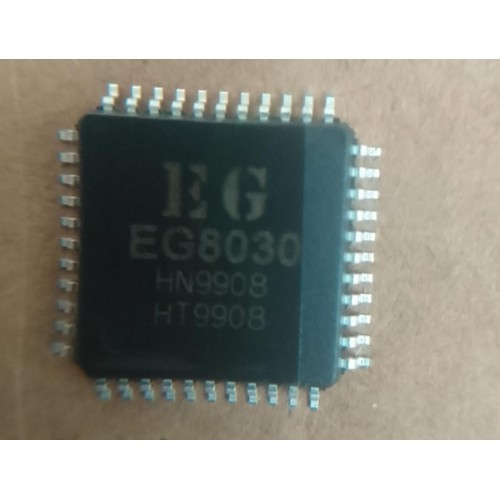

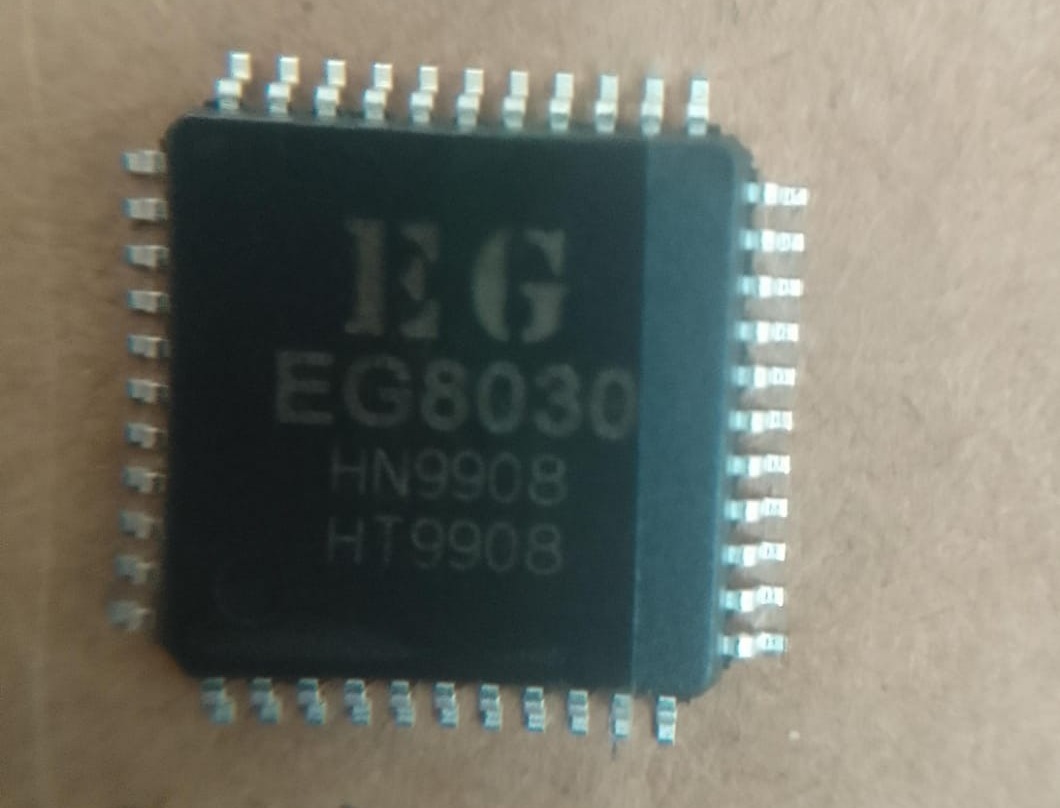

EG8030 SMD IC (Three-phase SPWM Inverter ASIC)

EG8030 SMD IC (Three-phase SPWM Inverter ASIC)

EG8030 is a digital, full-featured four kinds of work that comes with dead-time control of three-phase pure sine wave inverter generator chip, configurable Operation mode can be applied to DC-DC-AC two-stage power conversion architecture, or a single-stage DC-AC step-up transformer frequency transform architecture. External 16MHz crystal oscillator Device, can produce high precision, very small harmonic distortion and phase signal SPWM. And have the perfect sampling mechanism, capable of acquiring a current signal, temperature Of the signal, a phase voltage signal, the implementation process, and to realize the protection function, output voltage regulation. Chip using CMOS technology, the internal integration SPWM Sine generator, dead time control circuit, the amplitude of the multiplier factor, a soft start circuitry.

DNA solutions, Nashik has various types of IC'S. Check out our complete collection of IC'S.

• 5V single power supply

• External 16MHz crystal oscillator

• Pin configuration four working modes

• Three-phase independent closed-loop voltage regulation

• Real-time processing of voltage, current and temperature feedback

• Overvoltage, undervoltage, overcurrent, short circuit

• Pin 3S soft start

• Phase sequence reversal function

• Phase clear function

• One LED status indication and buzzer alarm

Related links

EG8030 IC datasheet

Package Includes

1 x EG8030 SMD IC (Three-phase SPWM Inverter ASIC)
