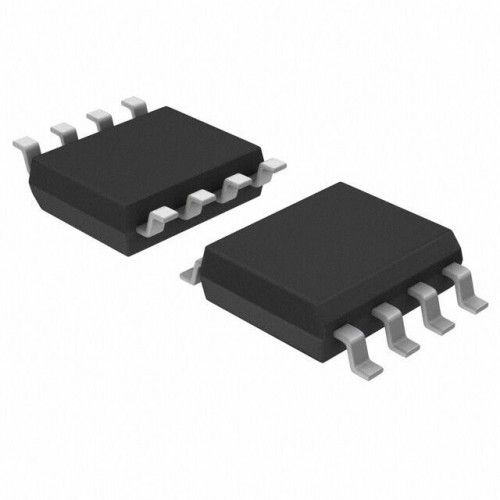

IR2301STRPBF MOSFET HIGH AND LOW SIDE DRIVER IC

IR2301STRPBF MOSFET HIGH AND LOW SIDE DRIVER IC

The IR2301STRPBF MOSFET are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune

• Gate drive supply range from 5 to 20V

• Under voltage lockout for both channels

• 3.3V, 5V and 15V input logic compatible

• Matched propagation delay for both channels

• Logic and power ground +/- 5V offset.

• Lower di/dt gate driver for better noise immunity

• Outputs in phase with inputs

• Also available LEAD-FREE (PbF)

Applications of IR2301STRPBF MOSFET HIGH AND LOW SIDE DRIVER IC

• Motor Drives: Used to control high- and low-side MOSFETs in half-bridge or full-bridge motor driver circuits, suitable for brushless DC motors and stepper motors.

• DC-DC Converters: Essential in synchronous buck, boost, and buck-boost converters, where efficient MOSFET switching is required.

• Inverters: Utilized in solar inverters and other AC-DC power conversion applications, enabling high-speed switching for efficient energy transfer.

• UPS Systems: Provides control for high and low side MOSFETs, supporting reliable operation of uninterruptible power supplies.

• Switch-Mode Power Supplies (SMPS): Suitable for high-speed and high-power SMPS designs, where efficient switching reduces energy losses.

Package Includes

• 1 x IR2301STRPBF MOSFET HIGH AND LOW SIDE DRIVER IC
