  • L6391 High voltage high and low-side driver (SO14) IC

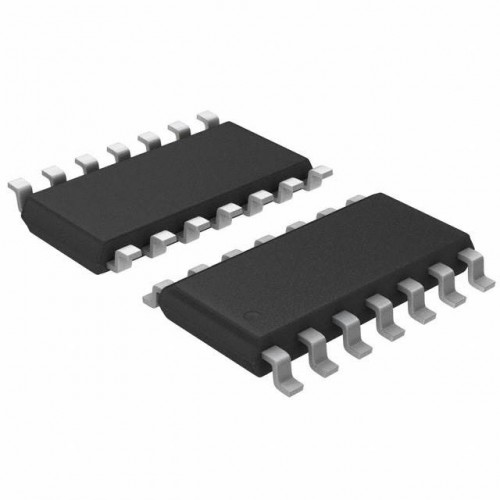

Product Images are shown for illustrative purposes only and may differ from actual product.

L6391 High voltage high and low-side driver (SO14) IC


Write a review | 0 reviews

  • Stock: Out Of Stock
  • SKU: 7385 | DAH152
  • Rs. 106.20 (inc GST)
    Rs.90.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

L6391 High voltage high and low-side driver (SO14) IC

L6391 High voltage high and low-side driver (SO14) IC

The L6391 is a high voltage device manufactured with the BCD™ “OFF-LINE” technology. It is a single-chip half-bridge gate driver for N-channel power MOSFET or IGBT. The high-side (floating) section is designed to stand a voltage rail up to 600 V. The logic inputs are CMOS/TTL compatible down to 3.3 V for easy interfacing the microcontroller/DSP. An integrated comparator is available for protections against overcurrent, over temperature ,etc.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of L6391 High voltage high and low-side driver (SO14) IC

  • High voltage rail up to 600 V
  • dV/dt immunity ± 50 V/nsec in full temperature range
  • Driver current capability:– 290 mA source
  • Switching times 75/35 nsec rise/fall with 1 nF load
  • 3.3 V, 5 V TTL/CMOS inputs with hysteresis
  • Integrated bootstrap diode
  • Comparator for fault protections

Applications of L6391 High voltage high and low-side driver (SO14) IC

  • Motor driver for home appliances, factory automation, industrial drives and fans
  • HID ballasts, power supply units

    Package Includes

    • 1 x L6391 High voltage high and low-side driver (SO14) IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
