LAN9420I-NU Ethernet Controller IC

LAN9420I-NU Ethernet Controller IC

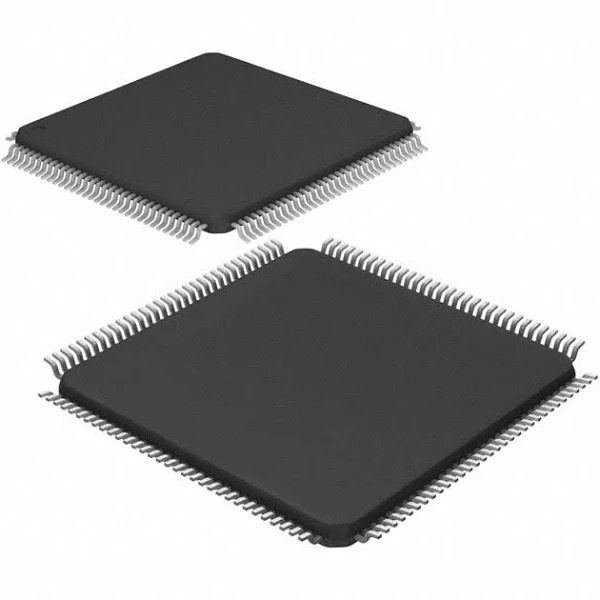

The LAN9420i-NU is a 10/100 Ethernet controller with an integrated MAC and PHY, designed to support low-power, high-efficiency network operations. It is tailored for embedded applications where compact size, low power consumption, and robust performance are critical. The IC is available in a small form factor (SMD package), making it suitable for space-constrained designs.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Integrated MAC and PHY: Combines both Media Access Control (MAC) and Physical Layer (PHY) functions into a single IC, reducing the need for external components and simplifying the design process.


• 10/100 Mbps Ethernet Support: Supports both 10 Mbps and 100 Mbps data transfer rates, providing flexibility for various network requirements.


• Low Power Consumption: Designed for energy efficiency, making it ideal for battery-powered and low-power applications.


• Flexible Host Interface: Supports multiple host interfaces, including 16-bit and 32-bit data buses, enabling easy integration with a wide range of microcontrollers and processors.


• Advanced Power Management: Includes features like Wake-on-LAN (WoL) and low-power idle modes to conserve energy during periods of inactivity.


Specifications of LAN9420I-NU Ethernet Controller IC

• Operating Speed: 10/100 Mbps


• Host Interface: 16/32-bit data bus, with integrated DMA


• Power Supply: Typically operates at 3.3V, with provisions for low-power modes


• Package Type: SMD (Surface-Mount Device) for compact and efficient PCB layout


• Operating Temperature Range: Industrial temperature range (-40°C to +85°C), suitable for harsh environments


• Integrated PHY: Supports auto-negotiation and auto-MDIX, simplifying network setup and configuration
