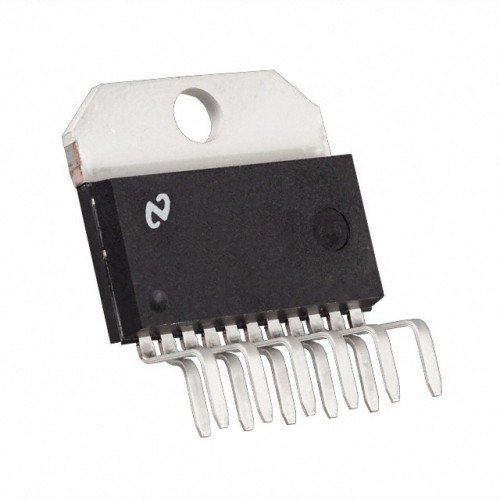

LM3886 High Performance Audio Power Amplifier IC

LM3886 High Performance Audio Power Amplifier IC

The LM3886 is a high-performance audio power amplifier capable of delivering 68W of continuous average power to a 4? load and 38W into 8? with 0.1% THD N from 20Hz?20kHz. The performance of the LM3886, utilizing its Self Peak Instantaneous Temperature  protection circuitry, puts it in a class above discrete and hybrid amplifiers by providing an inherently, dynamically protected Safe Operating Area (SOA). SPiKe protection means that these parts are completely safeguarded at the output against overvoltage, under voltage, overloads, including shorts to the supplies, thermal runaway, and instantaneous temperature peaks. The LM3886 maintains an excellent signal-to-noise ratio of greater than 92dB with a typical low noise floor of 2.0V.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• 135W Instantaneous Peak Output Power Capability


• Signal-to-Noise Ratio ? 92dB


• An Input Mute Function


• Output Protection from a Short to Ground or to the Supplies via Internal Current Limiting Circuitry


• Output Over-Voltage Protection against Transients from Inductive Loads


• Supply Under-Voltage Protection, not Allowing Internal Biasing to Occur


• 11-Lead TO-220 Package


Specifications of LM3886 High Performance Audio Power Amplifier IC

• Part number LM3886


• Audio input type Analog Input


• Architecture Class-AB


• Speaker channels (Max) Mono


• Power stage supply (Min) (V) 20


• Power stage supply (Max)(V) 94


• Output power (W) 68


Package Includes

• 1 x LM3886 High Performance Audio Power Amplifier IC
