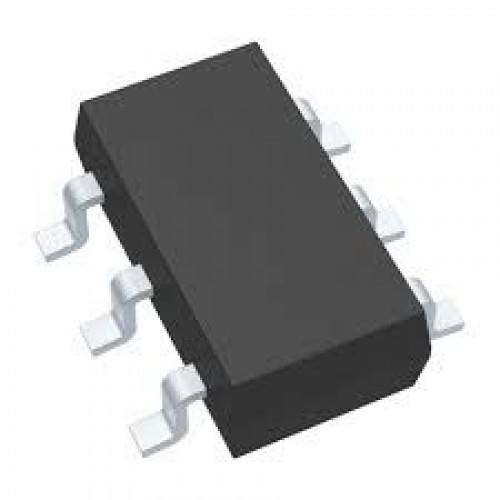

MCP3425A0T SMD IC (SOT-23)

MCP3425A0T SMD IC (SOT-23)

The MCP3425A0T is a single-channel, low-noise, high-accuracy 16-bit analog-to-digital converter (ADC) from Microchip Technology. It is designed for precise measurements in a compact SOT-23 surface-mount package, making it ideal for space-constrained applications. The MCP3425A0T communicates via an I²C interface, allowing for easy integration with microcontrollers and other digital systems.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• High Resolution: 16-bit resolution for accurate measurements.


• I²C Interface: Simplifies communication with microcontrollers.


• Single-Channel: Measures one analog input.


• Internal Voltage Reference: Provides stable and precise reference voltage.


• Low Power Consumption: Ideal for battery-operated devices.


• Programmable Gain Amplifier (PGA): Supports gain settings to amplify low-level signals.


• Automatic Conversion Mode: Continuously converts data and stores it in an output register.


• Low Noise: Ensures high accuracy in measurement.


Specifications of MCP3425A0T SMD IC (SOT-23)

• ADC Resolution: 16-bit


• Number of Channels: 1


• Interface: I²C


• Input Voltage Range: 0V to VDD


• Voltage Reference: Internal, 2.048V


• Programmable Gain: PGA settings of 1x, 2x, 4x, and 8x


• Sampling Rate: Up to 15 samples per second (SPS)


• Conversion Mode: One-shot and continuous conversion modes


Package Includes

1 x MCP3425A0T SMD IC (SOT-23)
