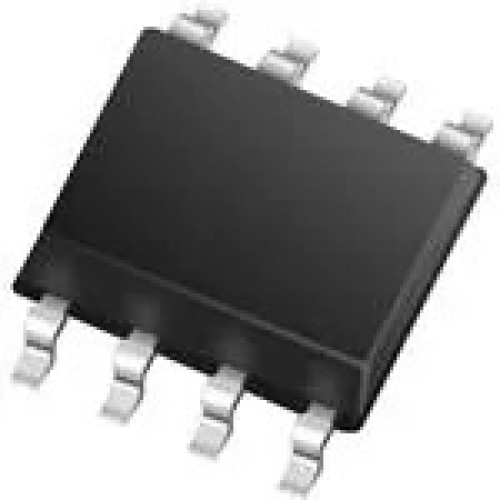

MCP4021-103E (SOIC8) Low-Cost Digital Potentiometer IC

MCP4021-103E (SOIC8) Low-Cost Digital Potentiometer IC

The MCP4021-103E devices are non-volatile, 6-bit digital potentiometers that can be configured as either a potentiometer or rheostat. The wiper setting is controlled through a simple Up/Down (U/D) serial interface. These device’s implement Microchip’s Wiper Lock technology, which allows application-specific calibration settings to be secured in the EEPROM without requiring the use of an additional write-protect pin.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Non-volatile Digital Potentiometer in SOT-23, SOIC, MSOP and DFN packages


• 64 Taps: 63 Resistors with Taps to terminal A and terminal B


• Simple Up/Down (U/D) Protocol


• Power-on Recall of Saved Wiper Setting


• Resistance Values: 2.1 kΩ, 5 kΩ, 10 kΩ or 50 kΩ


• Low Temp co: - Absolute (Rheostat): 50 ppm (0°C to 70°C typ.)


• Wiper Lock™ Technology to Secure the wiper setting in non-volatile memory (EEPROM)


Specifications of MCP4021-103E (SOIC8) Low-Cost Digital Potentiometer IC

• Resistor Configuration: 10kΩ


• Potentiometer Type: Non-volatile digital potentiometer


• Steps: 128 steps (7-bit resolution)


• End-to-End Resistance: 10 kΩ


• Tolerance: ±20%


• Interface: Simple up/down (two-wire) control interface


• Memory: Non-volatile EEPROM (remembers wiper position even after power is removed)


• Wiper Adjustment: Can be adjusted via simple digital signals (no need for an external microcontroller)


Package Includes

• 1 x MCP4021-103E (SOIC8) Low-Cost Digital Potentiometer IC
