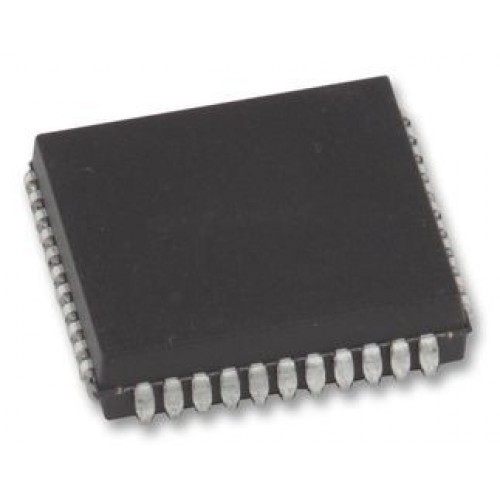

N78E517APG 8-bit 8051-based Microcontroller IC

N78E517APG 8-bit 8051-based Microcontroller IC

N78E517APG is an 8-bit microcontroller, which has an in-system programmable Flash supported. The instruction set of N78E517A is fully compatible with the standard 8051. N78E517A contains a maximum 64k [1] bytes of main Flash APROM, in which the contents of the main program code can be updated by parallel Programmer/Writer or In System Programming (ISP) method which enables on-chip firmware updating. There is an additional 2.5k bytes called LDROM for ISP function. N78E517A has a configurable size of Data Flash[1] which is 64k-byte shared with APROM, accessed with ISP.N78E517A provides additional power monitoring detection such as power-on and Brown-out detection. It stabilizes the power-on/off sequence for a high reliability system design.

DNA solutions, Nashik has various types of  IC's. Check out our complete collection of  IC's.

• Fully static design 8-bit CMOS microcontroller.


• Wide supply voltage of 2.4V to 5.5V and wide frequency from 4MHz to 40MHz.


• 12T mode compatible with the tradition 8051 timing.


• 6T mode supported for double performance.


• On-chip RC oscillator of 22.1184MHz/11.0592MHz, trimmed to ±1% at room temperature for the precise system clock.


• Maximum 64k bytes Flash APROM for the application program.


• 2.5k bytes Flash LDROM for ISP code.


Specifications of N78E517APG 8-bit 8051-based Microcontroller IC

• Architecture: 8-bit 8051-based Microcontroller


• Core: Enhanced 8051 CPU with high-speed performance


• Package Type: 40-pin PDIP


• Operating Frequency: Up to 24 MHz (main clock)


• Timers: Three 16-bit timers/counters (Timer 0, Timer 1, Timer 2)


Package Includes

• 1 x N78E517APG 8-bit 8051-based Microcontroller IC
