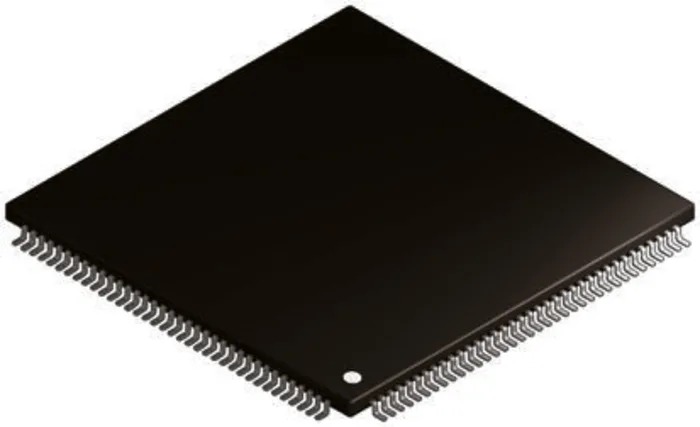

STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP

STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP

The STM32F429ZGT6 IC MCU 32BIT devices are based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHZ. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm® single precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The  STM32F429xx devices incorporate high-speed embedded memories (Flash memory up to 2 Mbyte, up to 256 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/OS and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

• LCD parallel interface, 8080/6800 modes


• LCD-TFT controller with fully programmable resolution (total width up to 4096 pixels, total height up to 2048 lines and pixel clock up to 83 MHz)


• Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)


• 2×12-bit D/A converters


• General-purpose DMA: 16-stream DMA controller with FIFOs and burst support


• 8- to 14-bit parallel camera interface up to 54 Mbytes/s


• True random number generator


Specifications of STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP

• Core Processor: ARM Cortex-M4


• Flash Memory: 1 MB


• Timers: 16 timers (including 2 advanced control timers for motor control)


• Low Power Modes: Sleep, Stop, and Standby modes with RTC


• Display Interface: TFT-LCD controller with 24-bit parallel RGB interface


Package Includes

• 1 x STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP
