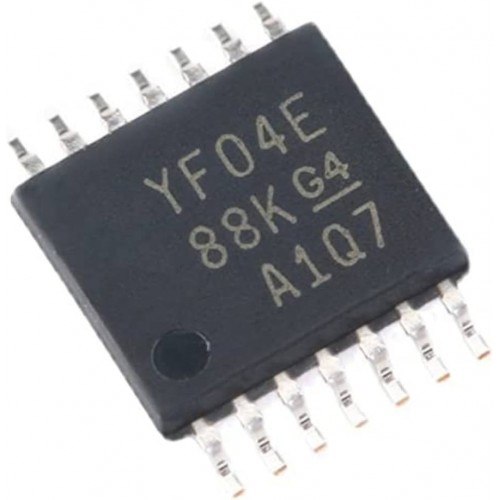

TXS0104E 4-Bit Bidirectional Voltage-Level Translator IC

TXS0104E 4-Bit Bidirectional Voltage-Level Translator IC

TXS0104E SMD IC is a 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Bidirectional Voltage-Level Translation: Supports 1.2V to 3.6V on the A-side and 1.65V to 5.5V on the B-side.


• Automatic Direction Sensing: Automatically detects and adjusts the direction of data flow.


• High Speed: Operates at speeds up to 110 Mbps (push-pull) and 1 Mbps (open-drain).


• ESD Protection: ±15-kV Human-Body Model (HBM) protection ensures robust performance in harsh environments.


• Integrated Pull-up and Pull-down Resistors: Simplifies design by eliminating the need for external components.


Specifications of TXS0104E 4-Bit Bidirectional Voltage-Level Translator IC

• Operating Voltage Range (VCCA): 1.2V to 3.6V


• Operating Voltage Range (VCCB): 1.65V to 5.5V


• Data Rate: Up to 110 Mbps for push-pull applications


• Quiescent Current (ICC): Typically 5 µA (maximum 12 µA)


• Operating Temperature Range: -40°C to +85°C


• Package Type: TSSOP-14 (14-pin)
