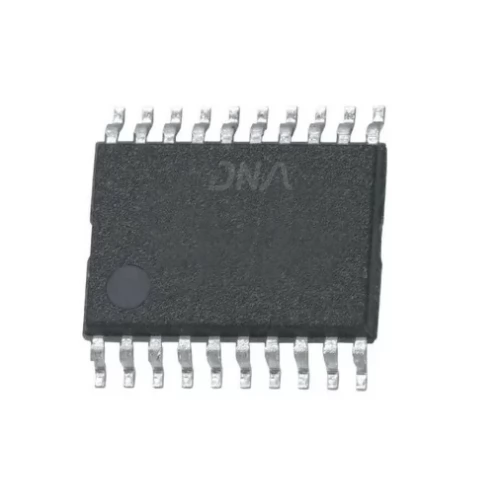

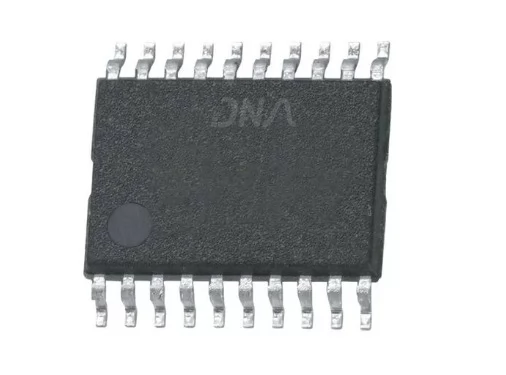

TXS0108EPWR 8 Channel Bi-Directional Logic Level Converter IC

TXS0108EPWR 8 Channel Bi-Directional Logic Level Converter IC

TXB0108 8-Bit Bidirectional Voltage-Level Translator with Auto-Direction Sensing and ±15-kV ESD Protection. This device is an 8-bit non-inverting level translator which uses two separate configurable power-supply rails. The A port tracks the VCCA pin supply voltage. The VCCA pin accepts any supply voltage between 1.4V and 3.6V. The B port tracks the VCCB pin supply voltage.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• No direction-control signal needed


• Maximum data rates:– 110Mbps (push pull)


• No power-supply sequencing required – either


• VCCA or VCCB can be ramped first


• Latch-up performance exceeds 100mA per JESD 78


Specifications of TXS0108EPWR 8 Channel Bi-Directional Logic Level Converter IC

• 1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA ≤ VCCB)


• VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State


• OE Input Circuit Referenced to VCC


• Low Power Consumption, 4-μA Max ICC


• Ioff Supports Partial-Power-Down Mode Operation


• ESD Protection Exceeds JESD 22 – A Port


• 1000-V Charged-Device Model (C101)


Package Includes

• 1 x TXS0108EPWR 8 Channel Bi-Directional Logic Level Converter IC
