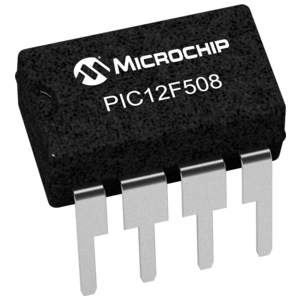

PIC12F508 Microcontroller

The PIC12F508 devices from Microchip Technology are low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontrollers.

They employ a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle (200 µs) except for program branches, which take two cycles. The PIC12F508/509/16F505 devices deliver performance an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly.

Features of PIC12F508

• Precision 4 MHz internal oscillator

• Baseline Core with 33 Instructions, 2 Stack Levels

• All single-cycle Instructions except for program branches which are two cycles

• 12-bit wide instructions

• 8-bit wide data path

• 25 mA source/sink current I/O

• Low power (100nA) sleep current

• One 8-bit timer (TMR0)

• Watchdog timer (WDT)

• In Circuit Serial Programming™ (ICSP™) capability

• In-Circuit debugging support

• Programmable code protection

• Program Memory Type : Flash

• Program Memory (KB) : 0.75

• CPU Speed (MIPS) : 1

• RAM Bytes : 25

• Timers : 1 x 8-bit

• Temperature Range (C) : -40 to 125

• Operating Voltage Range (V) : 2 to 5.5

• Pin Count : 8
