Product Images are shown for illustrative purposes only and may differ from actual product.

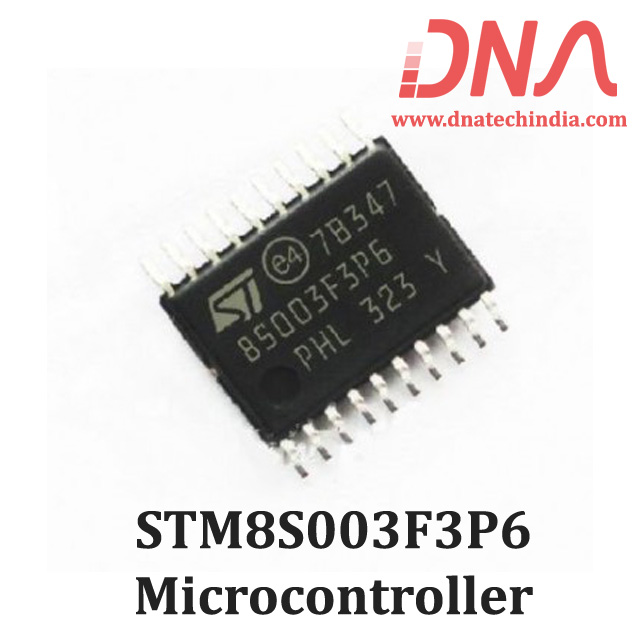

STMicroelectronics STM8S003F3P6 8-Bit Microcontroller

Write a review | 0 reviews

Stock: 14
Availability: InStock priceValidUntil: 2026-12-06
Brand: ST Microelectronics
SKU: 1049 | DAA136

Rs. 35.40 (inc GST)
Rs.30.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

STMicroelectronics STM8S003F3P6 8-Bit Microcontroller

STM8S003F3P6 8-bit microcontroller with 16 MHz CPU, 8-Kbyte Flash, 10-bit ADC, and UART, SPI, and I2C interfaces.

STMicroelectronics STM8S003F3P6 is an 8-bit microcontroller for embedded control designs. It runs at up to 16 MHz and accepts a 2.95–5.5 V supply. Its compact 8-bit microcontroller design combines program memory, RAM, data EEPROM, and control peripherals in one device.

The STM8 core, three timers, and 10-bit ADC support control logic and analog input handling. UART, SPI, and I2C interfaces connect the controller to other system devices, while low-power modes and clock monitoring help designers manage system operation. The TSSOP20 package suits designs with board-space limits, and SWIM supports programming and non-intrusive debugging.

Use this controller in motor control, lighting, and half-bridge driver applications, where timing, input monitoring, and serial communication can serve several roles within one embedded design.

DNA supplies STMicroelectronics parts for embedded designs, including this 8-bit controller. Browse our STM Microcontroller range for parts that fit your project and sourcing needs. Check other STM Microcontroller that we have in stock

For Indian electronics buyers, DNA offers retail and bulk support, plus import support if you cannot find a part. Contact us to ask about this controller or related items such as sensors, crystals, resistors, and development modules. Contact Us

Features of STMicroelectronics STM8S003F3P6 8-Bit Microcontroller

Harvard-based STM8 core with a staged instruction pipeline
On-chip timers support timing and control tasks
ADC combines channel scanning with an analog watchdog
UART1, SPI, and I2C provide serial links for peripherals
Low-power modes and clock monitoring support power-aware designs
SWIM enables on-chip programming and non-intrusive debugging

Specifications of STMicroelectronics STM8S003F3P6 8-Bit Microcontroller

Maximum CPU frequency: 16 MHz
Operating supply voltage: 2.95–5.5 V
Program memory: 8 Kbytes Flash
RAM: 1 Kbyte
Data EEPROM: 128 bytes, up to 100,000 erase/write cycles
Maximum GPIO count: 16 for the 20-pin variant
ADC: 10-bit successive-approximation, up to 5 external multiplexed channels, input range 0 to VDDA
Package: TSSOP20, 20 leads, 0.65 mm lead pitch

Applications of STMicroelectronics STM8S003F3P6 8-Bit Microcontroller

Motor control
Lighting
Half-bridge driver applications

Package Includes

1 X STMicroelectronics STM8S003F3P6 8-Bit Microcontroller

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
