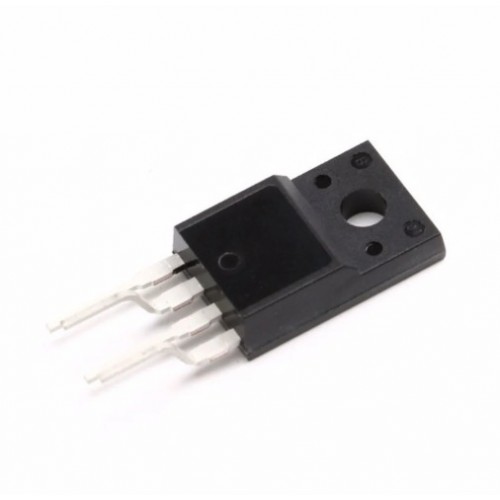

KA5L0380R Power Switch IC

5L0380R Power Switch (FPS)

5L0380R is an is an Integrated Power Switch for 35Watt offline flyback converters. Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consists of a high voltage power Sense FET and a current mode PWM IC.

Included PWM controller integrates the fixed frequency oscillator, the under voltage lock-out, the leading edge blanking, the optimized gate turn-on/turn-off driver, the thermal shutdown protection, the over voltage protection, and the temperature compensated precision current sources for the loop compensation and the fault protection circuitry.

Compared to a discrete MOSFET and a PWM controller or an RCCsolution, a Fairchild Power Switch(FPS) can reduce the total component count, design size and weight and at the same time increase efficiency, productivity, and system reliability. It has a basic platform well suited for the cost effective design in either a flyback converter or a forward converter.

We have Various sizes of Power Device IC. Check out our complete collection of Power Device IC.

Features of KA5L0380R Power Switch IC

• Precision fixed operating frequency (100/67/50kHz)
• Low start-up current (typ. 100µA)
• Pulse by pulse current limiting
• Over current protection
• Over voltage protecton (Min. 25V)
• Internal thermal shutdown function
• Under voltage lockout
• Internal high voltage sense FET
• Auto-restart mode
