  • REF02HP +5V Precision Voltage Reference

Product Images are shown for illustrative purposes only and may differ from actual product.

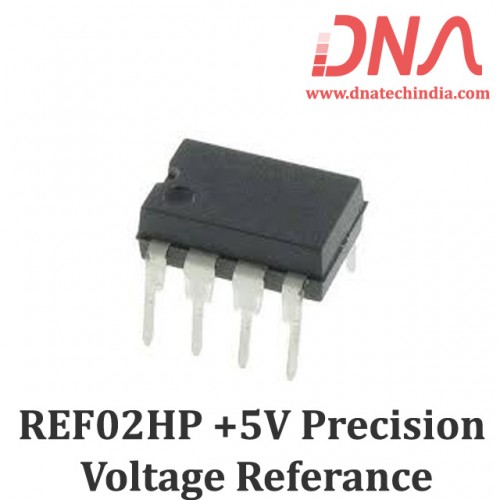

REF02HP +5V Precision Voltage Reference


Write a review | 0 reviews

  • Stock: Out Of Stock
  • SKU: 3187 | DAD227
  • Rs. 404.74 (inc GST)
    Rs.343.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

REF02HP +5V Precision Voltage Reference

         REF02HP +5V Precision Voltage Reference

The REF02 is a precision 5V voltage reference. The drift is laser trimmed to 10ppm/°C max over the extended industrial and military temperature range. The REF02 provides a stable 5V output that can be externally adjusted over a ±6% range with minimal effect on temperature stability. The REF02 operates from a single supply with an input range of 8V to 40V with a very low current drain of 1mA, and excellent temperature stability due to an improved design. Excellent line and load regulation, low noise, low power, and low cost make the REF02 the best choice whenever a 5V voltage reference is required. Available package options are DIP-8 and SO-8. The REF02 is an ideal choice for portable instrumentation, temperature transducers, Analog-to-Digital (A/D) and Digitalto-Analog (D/A) converters, and digital voltmeters.

DNA solutions,Nashik has various types of Power IC's . Check out our complete collection of Power IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features Of REF02HP

  • OUTPUT VOLTAGE: +5V ±0.2% max
  • EXCELLENT TEMPERATURE STABILITY: 10ppm/°C max (–40°C to +85°C)
  • LOW NOISE: 10µVPP max (0.1Hz to 10Hz)
  • EXCELLENT LINE REGULATION: 0.01%/V max
  • EXCELLENT LOAD REGULATION: 0.008%/mA max
  • LOW SUPPLY CURRENT: 1.4mA max
  • SHORT-CIRCUIT PROTECTED
  • WIDE SUPPLY RANGE: 8V to 40V
  • INDUSTRIAL TEMPERATURE RANGE: –40°C to +85°C

APPLICATIONS Of REF02HP

  • PRECISION
  • CONSTANT CURRENT SOURCE/SINK
  • DIGITAL VOLTMETERS
  • V/F CONVERTERS
  • A/D AND D/A CONVERTERS
  • PRECISION CALIBRATION STANDARD
  • TEST EQUIPMENT

Package Includes

1 x DIP-8, SO-8

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
