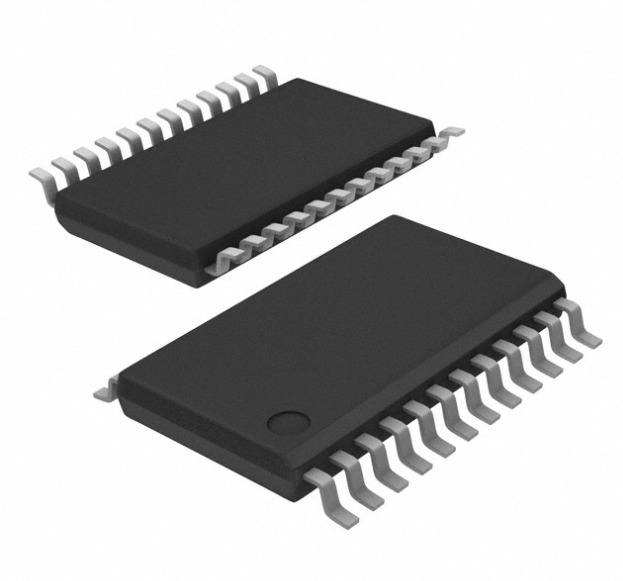

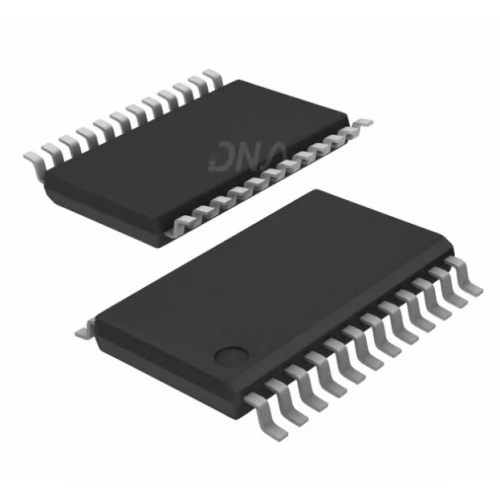

ADS1232 24bit Low Noise Analog To Digital Converter SMD IC

ADS1232 24bit Low Noise Analog To Digital Converter SMD IC

The ADS1232 is a high-performance, low-noise, 24-bit ΔΣ (delta-sigma) analog-to-digital converter (ADC) designed for high-precision measurements. It integrates an instrumentation amplifier, a programmable gain amplifier (PGA), and a low-drift voltage reference, making it ideal for applications requiring high resolution and accuracy. This IC operates with a low power consumption, making it suitable for battery-powered and portable devices.

DNA solutions, Nashik has various types of Analog - Digital Converter IC's. Check out our complete collection of Analog - Digital Converter IC's.

• 24-bit delta-sigma ADC for high-precision conversion

• Low noise with excellent signal-to-noise ratio (SNR)

• Two differential input channels

• Internal low-drift voltage reference (2.048V)

• Selectable data rates: 10 SPS or 80 SPS

• On-chip oscillator, eliminating the need for an external clock

• Temperature sensor for environmental monitoring

• Low power consumption for battery-powered applications

Specifications of ADS1232 24bit Low Noise Analog To Digital Converter SMD IC

• Resolution: 24-bit

• Input Voltage Range: ±VREF / Gain

• Power Supply Voltage: 2.7V to 5.3V

• Input Current: ~0.5mA

• Common-Mode Rejection Ratio (CMRR): >110 dB

• Operating Temperature Range: -40°C to +85°C

• Package Type: 24-pin SSOP

Applications of ADS1232 24bit Low Noise Analog To Digital Converter SMD IC

• Weighing scales

• Industrial process control

• Medical instrumentation

• Temperature measurement systems

• Bridge sensor interfaces

• Scientific and laboratory instrumentation

Package Includes

      1 x ADS1232 24bit Low Noise Analog To Digital Converter SMD IC
