Product Images are shown for illustrative purposes only and may differ from actual product.

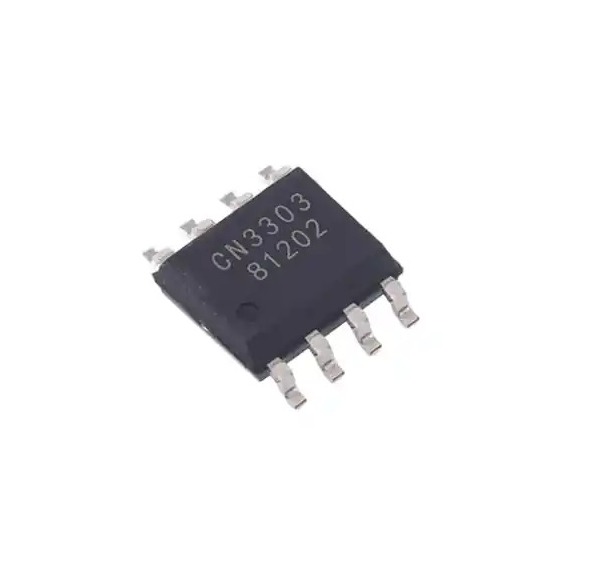

CN3303 PFM boost three-cell lithium battery charging control IC

Write a review | 0 reviews

Stock: 7

SKU: 3769 | DAF736

Rs. 49.56 (inc GST)
Rs.42.00 + GST

Qty :
Qty

Electronic Component of the Week (ELCOW) Raspberry Pi 3B+ In Stock

GST Invoice on all Purchase. So you will be eligible to take input tax credit.
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.
Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Description

CN3303 PFM Boost Three Cell Lithium Battery charging control IC

CN3303 PFM Step-up 3-cell USB Compatible Lithium Battery Charger IC - SOP8

CN3303 is a PFM boost type three-phase converter operating from 2.7V to 6.5V. Lithium-ion battery charging control integrated circuit. CN3303 adopts constant current and Quasi-constant voltage mode (Quasi-CVTM) performs charge management on the battery. Internally integrated reference voltage source, inductor current detection unit, battery Voltage detection circuit and off-chip field effect transistor drive circuit, etc. It has the advantages of fewer external components and simple circuit.

When the battery voltage is lower than the input voltage or the battery is short-circuited, CN3303 the joint operation of off-chip N-channel MOSFET and P-channel MOSFET After use, continue to charge the battery with a smaller current, which will have a positive effect on the battery.

DNA solutions, Nashik has various types of Battery Charging IC. Check out our complete collection of Litinum Ion Charger IC's

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of CN3303 Li-Ion Battery Charging IC

Operating Current：280uA@VIN=5V
Inductor Current Detection
Switching Frequency up to 1MHz
Quasi-CV mode to Compensate for the Voltage Loss on Battery Internal Resistance and Trace Resistance
Protection for Low Battery Voltage and Short Battery
Input Voltage Range：2.7V to 6.5V
Automatic Adaptability to Input Supply with Limited Driving Capability
Chip Enable Input
Battery Overvoltage Protection
Status Indication
Operating Temperature ：－40℃ to 85℃
Available in SOP8 Package
Input Voltage Range：2.7V to 6.5V
Output Power up to 35W

Package Includes

1 x CN3303 PFM boost three-cell lithium battery charging control IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
