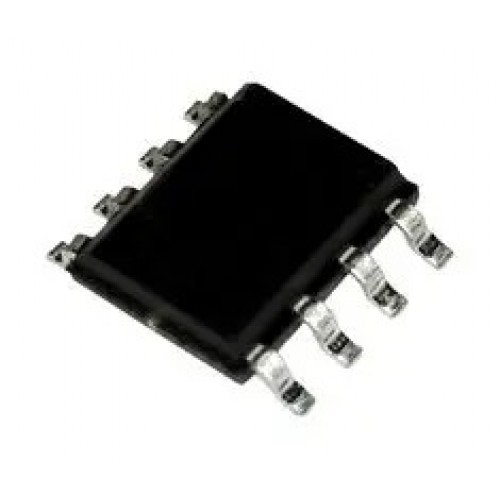

SN65HVD3082 EDR SMD IC

SN 65HVD3082 EDR SMD IC

The SN65HVD3082EDR is a low-power Half-duplex Transceiver designed for RS-485 data bus networks. Powered by a 5V supply, it is fully compliant with TIA/EIA-485A standard. With controlled transition times, this device is suitable for transmitting data over long twisted-pair cables. This device is optimized for signalling rates up to 200kbps. This device is designed to operate with very low supply current, typically 0.3mA, exclusive of the load. When in the inactive-shutdown mode, the supply current drops to a few nanoamps, which makes these devices ideal for power-sensitive applications. The wide common-mode range and high ESD-protection levels of this device makes them suitable for demanding applications such as energy meter networks, electrical inverters, status and command signals across telecom racks, cabled chassis interconnects and industrial automation networks where noise tolerance is essential.

DNA solutions, Nashik has various types of SMD IC. Check out our complete collection of SMD IC.

• Industry-standard SN75176 footprint

• Bus-pin ESD protection up to 15kV

• Green product and no Sb/Br

• 1/8 Unit-load (up to 256 nodes on the bus)

• Failsafe receiver (bus open, bus shorted and bus idle)

• Glitch-free power-up and power-down bus inputs and outputs

• Low quiescent power - 0.3mA Active mode and 1nA shutdown mode

Application

• Computers & Computer Peripherals


• Automation & Process Control


• Sensing & Instrumentation


• Power Management


Package Includes

1 x SN 65HVD3082 EDR SMD IC
