Product Images are shown for illustrative purposes only and may differ from actual product.

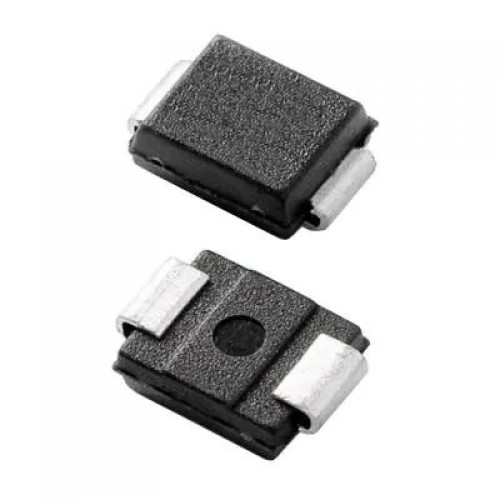

SMBJ160CA-Q Transient Voltage Suppressor Diodes
- Stock: Out Of Stock NotInStock
- SKU: 7118 | DAH083
-
Rs.
8.60 (inc GST)
Rs.7.29 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |
SMBJ160CA-Q Transient Voltage Suppressor Diodes
SMBJ160CA-Q Transient Voltage Suppressor Diodes
The SMBJ160CA-Q is part of the SMBJ series of TVS diodes. It is designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This component is specifically tailored for automotive and other high-reliability applications, meeting the stringent requirements of such environments.
DNA solutions, Nashik has various types of Diode's. Check out our complete collection of Diode's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of SMBJ160CA-Q Transient Voltage Suppressor Diodes
- Bidirectional TVS Diode: Protects against positive and negative voltage transients.
- Surface Mount Package: SMB (DO-214AA) package suitable for automated assembly processes.
- High Surge Capability: Can handle high transient current.
- Automotive Grade: Qualified to AEC-Q101 standards for automotive applications.
- Fast Response Time: Clamps the voltage spikes quickly to prevent damage.
- Low Leakage Current: Minimizes power loss during normal operation.
- Glass Passivated Junction: Ensures long-term reliability and stability.
Specifications of SMBJ160CA-Q Transient Voltage Suppressor Diodes
- Reverse Stand-Off Voltage (V<sub>RWM</sub>): 160V
- Breakdown Voltage (V<sub>BR</sub>): Min 178V, Max 198V at 1mA
- Clamping Voltage (V<sub>C</sub>): 259V at 1A
- Peak Pulse Current (I<sub>PP</sub>): 1A
- Peak Pulse Power Dissipation (P<sub>PP</sub>): 600W (10/1000µs waveform)
- Leakage Current (I<sub>D</sub>): 1µA at 160V
Package Includes
1 x SMBJ160CA-Q Transient Voltage Suppressor Diodes
