SSRV05-4 ESD Protection Diode Array

SRV05-4 TCT is a surge-rated transient Voltage Suppressor(TVS) Diode

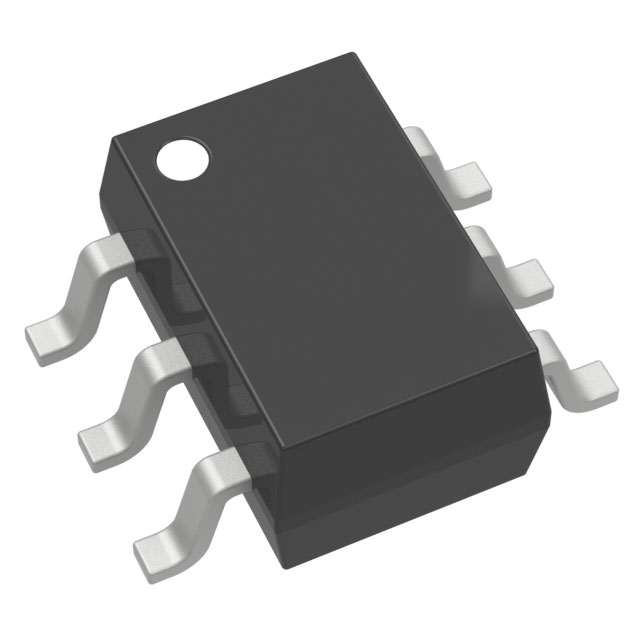

The SRV05-4A is a low capacitance TVS (Transient Voltage Suppressor) array designed to protect sensitive semiconductor components from electrical overstress when interfaced to high-speed data lines. The low capacitance(1.5pF typical I/O to I/O) of the SRV05-4A ensures negligible signal attenuation at data rates up to 3.5GHz. The solid-state construction ensures fast clamping of electrical overstress transients resulting from ESD (electrostatic discharge), EFT (Electrical Fast Transients) or CDE (Cable Discharge Events). The SRV05-4A is in a 6-lead SOT-23 package. The leads are finished with lead-free matte tin. Each device will protect up to four high-speed lines. They may be used to meet the ESD immunity requirements of IEC 61000-4-2. The combination of small size, low capacitance, and high surge capability makes them ideal for use in applications suchas10/100Ethernet, USB 2.0, and video interfaces. In addition to low capacitance, the SRV05-4A provides superior surge current capability and excellent voltage clamping performance. The surge current capability (8x20μs) is rated at 20A; approximately 50% higher than industry norms. Furthermore, the tight clamping ratio (VC/VRWM) of 1.75 (typical at 1A) ensures harmful transients are clamped quickly and close to the normal working voltage of the circuit. The super tight clamping ratio is 30%better than industry norms and ensures superior protection of sensitive integrated circuits.

DNA solutions, Nashik has various types of Diode. Check out our complete collection of Diode's.

• High reverse surge current, IPP, capability


• ESD protection in accordance with


• IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)


• IEC 61000-4-5 (Lightning) 20A (8/20μs)


• IEC 61000-4-4 (EFT) 40A (5/50ns)


• Array of surge rated diodes with internal TVS Diode


• Tight clamping ratio, VC/VRWM, ensures superior protection


• Small package saves board space


• Protects four I/O lines


• Low idle current minimizes standby power consumption


• Low capacitance: 1.5pF typical (I/O to I/O)


• Low clamping voltage


• Low operating voltage: 5V


• Solid-state silicon-avalanche technology


Applications of SRV05-4 ESD Protection Diode Array

• Digital Visual Interface (DVI)

• USB 2.0 Power and Data Line Protection

• Video Graphics Cards

• Notebook Computers

• Monitors and Flat Panel Displays

• 10/100 Ethernet

• SIM Ports

• IEEE 1394 Firewire Ports

Package Includes

1 x SRV05-4 ESD Protection Diode Array
