  • US1M Ultrafast Power Diode

Product Images are shown for illustrative purposes only and may differ from actual product.

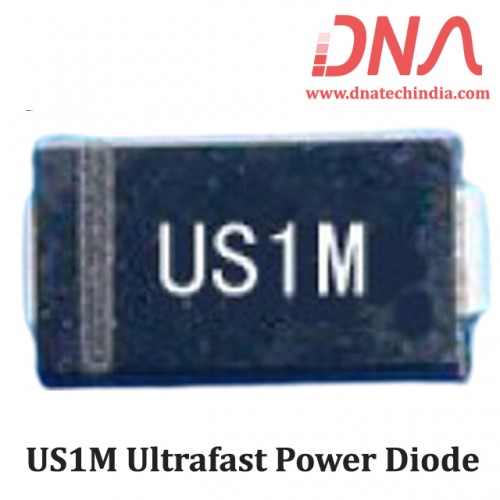

US1M Ultrafast Power Diode


Write a review | 0 reviews

  • Stock: Out Of Stock
  • SKU: 0881 | DAB574
  • Rs. 9.44 (inc GST)
    Rs.8.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

This product has a minimum quantity of 5

US1M Fast/Ultrafast Power Diode

The US1M is a surface mount ultra fast diode in SMB (DO-214AC) package.

The device features glass passivated chip junction, low forward voltage and low power loss, ultrafast recovery time for high efficiency and low profile package.

We have Various sizes of Diode. Check out our complete collection of Diode.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of US1M

  • Ideal for automated placement

  • Maximum repetitive reverse voltage Vrrm of 1KV

  • Non repetitive peak forward surge current IFSM of 30A

  • Maximum forward Voltage VF of 1.7V at IF 1A

  • Maximum forward current IF(AV) of 1A

  • Operating temperature range -65°C to 150°C

  • Reverse recovery time trr of 75ns

  • Glass passivated junction chip.

  • For surface mounted application.

  • Low profile package.

  • Built-in strain relief.

  • Ideal for automated placement.

  • Easy pick and place.

  • Superfast recovery time for high efficiency.

  • Glass passivated chip junction.

  • High temperature soldering: 260°C/10 seconds at terminals.

  • Plastic material.

Application of US1M

  • Power Management,

  • Industrial,

  • Portable Devices,

  • Consumer Electronics,

  • Automotive.

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
