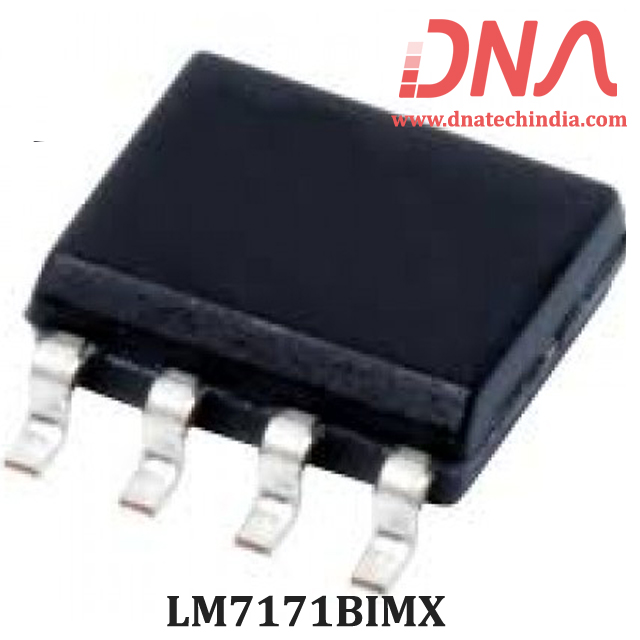

LM7171BIMX Voltage Feedback Amplifier (SOIC8)

LM7171X Very High Speed, High Output Current, Voltage Feedback Amplifier

The LM7171BIMX is a high speed voltage feedback amplifier that has the slewing characteristic of a current feedback amplifier, yet it can be used in all traditional voltage feedback amplifier configurations. The LM7171 is stable for gains as low as +2 or −1. It provides a very high slew rate at 4100V/μs and a wide unity-gain bandwidth of 200 MHz while consuming only 6.5 mA of supply current. It is ideal for video and high speed signal processing applications such as HDSL and pulse amplifiers. With 100 mA output current, the LM7171BIMX/NOPB can be used for video distribution, as a transformer driver or as a Operation laser diode driver.

Operation on ±15 V power supplies allows for large signal swings and provides greater dynamic range The LM7171BIMX/NOPB offers low SFDR and THD, ideal for ADC/DAC systems. In addition, the LM7171BIMX/NOPB is specified for ±5 V operation for portable applications. The LM7171BIMX/NOPB is built on TI's advanced VIP(Vertically integrated PNP) complementary bipolar process.

Features of LM7171BIMX High Speed Opamp

• Easy-to-Use Voltage Feedback Topology

• Very High Slew Rate : 4100 V/μs

• Wide Unity-Gain Bandwidth : 200 MHz

• very high slew rate at 4100V/μs

• −3 dB Frequency @ AV = +2 : 220 MHz

• Low Supply Current : 6.5 mA

• High Open Loop Gain : 85 dB

• High Output Current : 100 mA

• Differential Gain and Phase : 0.01%, 0.02°

• Specified for ±15V and ±5V Operation

Applications of LM7171BIMX High Speed Opamp

• HDSL and ADSL Drivers

• Multimedia Broadcast Systems

• Professional Video Cameras for portable applications.

• Video Amplifiers

• Copiers/Scanners/Fax

• HDTV Amplifiers process.

• Pulse Amplifiers and Peak Detectors

• CATV/Fiber Optics Signal Processing

Related Links

• Datasheet
