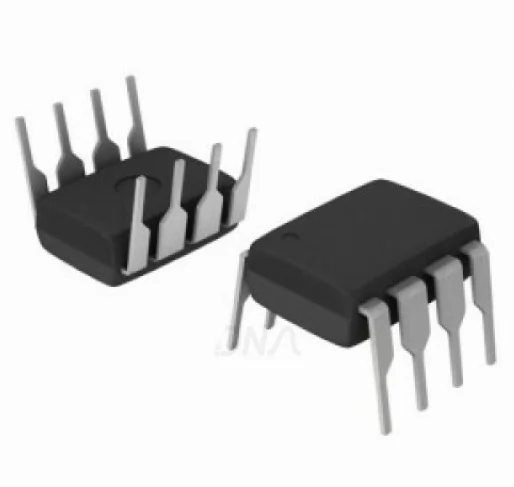

6N137 High Speed Optocoupler Dip IC

6N137 High Speed Optocoupler Dip IC

The 6N137 is an optocoupler or optoisolator that uses an LED (Light Emitting Diode) to generate light, which is detected by a photodetector (photodiode or phototransistor) on the output side, effectively transferring signals between input and output circuits. This isolation ensures that electrical signals can be transmitted while maintaining a separation between the high-voltage and low-voltage parts of the system, preventing damage to sensitive components.

DNA solutions, Nashik has various types of Optocoupler IC's. Check out our complete collection of Optocoupler IC's.

• High-Speed Operation: Supports data transmission speeds up to 10 Mbps, making it suitable for high-speed digital communication

• Wide Operating Voltage: Can operate with a 5V to 15V supply voltage range, providing flexibility for various voltage environments

• High Isolation Voltage: Offers an electrical isolation of up to 5000V (AC peak), ensuring safe separation between high-voltage and low-voltage circuits

• Output Type: Open collector output, which is ideal for driving logic-level inputs or interfacing with microcontrollers, PLCs, and other digital systems

Specifications of 6N137 High Speed Optocoupler Dip IC

• Package Type: 8-Pin DIP

• Isolation Voltage: 5000V

• Operating Supply Voltage (Vcc): 5V to 15V

• Operating Temperature Range: -40°C to +85°C

• Storage Temperature Range: -40°C to +125°C

• Output Configuration: Open collector

Applications of 6N137 High Speed Optocoupler Dip IC

• Microcontroller/PLC Interfacing

• Signal Isolation in Communication Systems

• Switching Power Supplies

• Industrial Control Systems

• Ground Loop Elimination

Package Includes

      1 x 6N137 High Speed Optocoupler Dip IC
