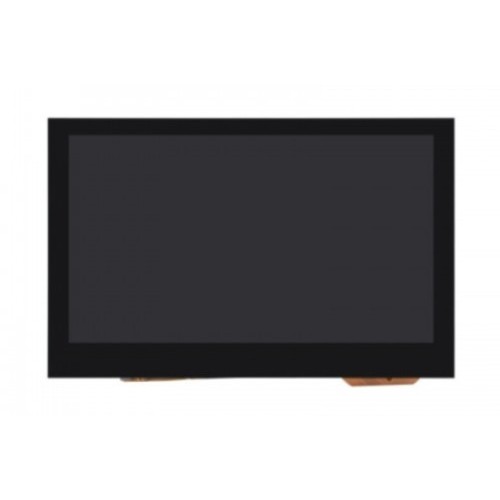

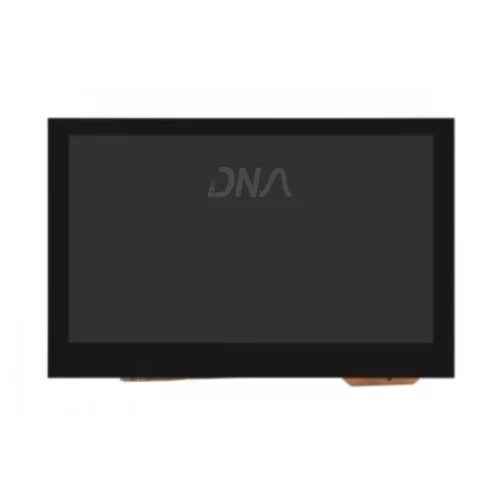

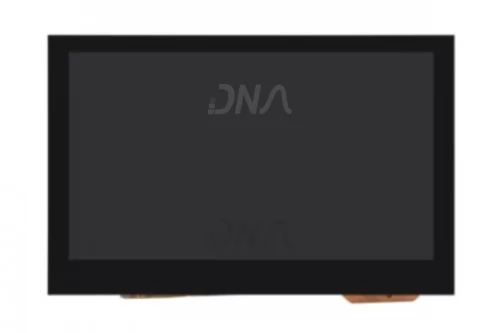

ESP32S3 4.3inch Capacitive Touch Display Development Board

ESP32S3 4.3inch Capacitive Touch Display Development Board

The ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna. ESP32-S3-Touch-LCD-4.3 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, and integrates high-capacity Flash and PSRAM. Onboard 4.3-inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

DNA solutions, Nashik has various types of Capacitive Touch Display's. Check out our complete collection of Capacitive Touch Display's.

• Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.

• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna.

• Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash.

• Onboard 4.3inch capacitive touch display, 800×480 resolution, 65K color.

• Supports capacitive touch control via I2C interface, 5-point touch with interrupt support.

• Onboard CAN, RS485, I2C interface, and TF card slot, integrate full-speed USB port.

• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.

Specifications of ESP32S3 4.3inch Capacitive Touch Display Development Board

• CPU: Dual-core Xtensa LX7, up to 240 MHz

• Flash Memory: Typically 8 MB, but may vary based on configuration

• PSRAM: Typically 8 MB

• Wi-Fi: 802.11 b/g/n (2.4 GHz)

• Bluetooth: Bluetooth 5 and Bluetooth Low Energy (BLE)

• GPIO Pins: Varies, often around 43 available GPIOs

Package Includes

• 1 x ESP32S3 4.3inch Capacitive Touch Display Development Board
