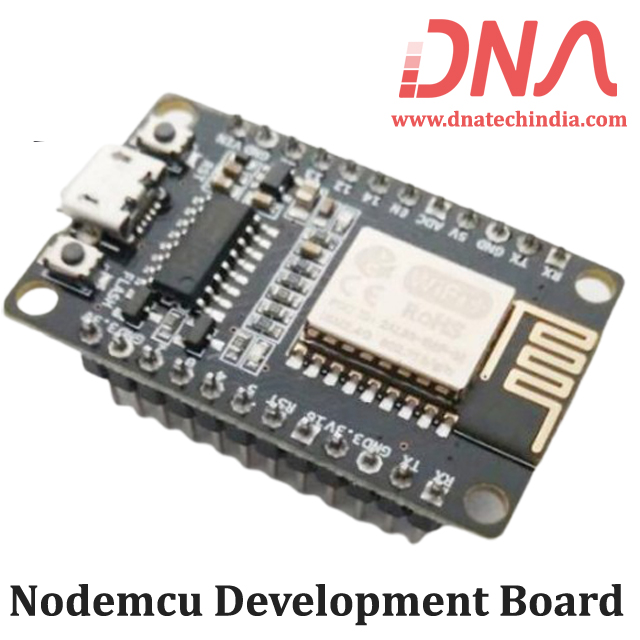

Nodemcu ESP8285-M2 CH340

ESP8285 Based Nodemcu. IoT Development Module

This is a NodeMcu based on ESP8285 module. Yes not ESP8266 or ESP32 this module is based on ESP8285-M2 chipset.

The chip integrates the enhanced version of the Tensilica's L106 Diamond 32-bit core processor with on-chip SRAM in a smaller package. ESP8285 has a complete Wi-Fi network function, both can be used independently, can also be used as a slave from other host MCU running. When the ESP8285 hosting application, can be started directly from the external Flash. Built-in cache memory facilitates system performance and optimizes storage systems. In addition, ESP8285 only through the SPI / SDIO interface or I2C / UART port can be used as a Wi-Fi adapter, applied to any microcontroller-based design.

DNA Solutions has large collection of various types of ESP Wifi Module. Check our complete collection of ESP Wifi Module.

Features of Nodemcu ESP8285-M2 CH340

• The volume is ultra-small;

• Serial to WiFi;

• Wireless transmission;

• Long-range ultra-low power consumption;

• High temperature, up to 125 ℃

• Fully compatible with ESP8266, the source can be used to transplant.

Characteristics of Nodemcu ESP8285-M2 CH340

• Built-in Tensilica L106 ultra-low power 32-bit microprocessor, clocked at 80MHz and 160MHz support RTOS

• Built-in TCP / IP protocol stack

• Built-in 1-channel 10-bit high-precision ADC

• Peripheral Interface HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO

• The deep sleep hold current is 10uA and the shutdown current is less than 5uA

• Wake up within 2 ms, connect and pass the packet

• Standby power consumption less than 1.0mW (DTIM3)

• Built-in 1M bytes of SPI Flash

Wi-Fi features of Nodemcu ESP8285-M2 CH340

• Supports 802.11 b / g / n / e / i

• Support Station, SoftAP, SoftAP + STA mode

• Support for Wi-Fi Direct (P2P)

• Supports CCMP (CBC-MAC, counter mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC hardware acceleration

• P2P discovery, P2P GO mode / GC mode and P2P power management

• WPA / PA2 PSK and WPS

• 802.11 i security features : pre-authentication and TSN

• Hold 802.11n (2.4 GHz)

• 802.1h / RFC1042 frame encapsulation

• Seamless roaming support

• Support AT remote upgrade and cloud OTA upgrade

• Support for Smart Config features (including Android and iOS devices)

• Operating temperature range : -40 ℃ -125 ℃

Applications of Nodemcu ESP8285-M2 CH340

• Household appliances

• Home automation

• Smart socket, smart light

• Mesh network

• Baby monitor

• IP camera

• sensor network

• can wear electronic products

• Security ID tag

• Wireless location awareness

• Wireless positioning system beacon

• Industrial wireless control
