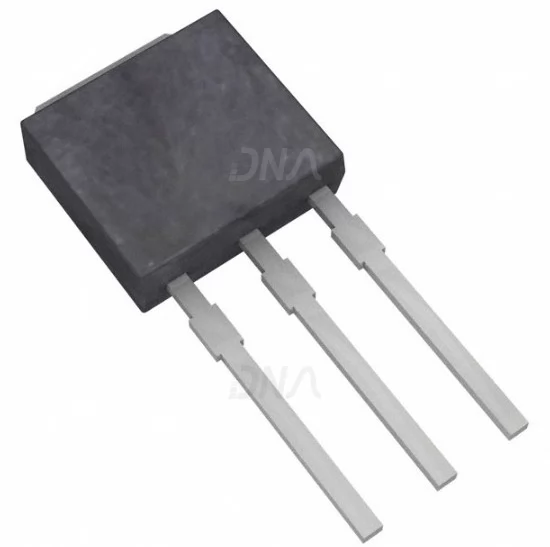

FQU8P10 P CHANNEL MOSFET 100 V 6.6A

FQU8P10 P CHANNEL MOSFET 100 V 6.6A

The FQU8P10 is a P-Channel MOSFET designed for high-efficiency power management applications. It operates with a maximum voltage of -100V and offers a continuous drain current rating of -6.6A. The MOSFET is built using advanced process technology, providing excellent switching characteristics, low on-resistance, and efficient performance in demanding circuits. It is housed in a TO-220 package, making it ideal for applications requiring robust thermal and electrical capabilities.

DNA solutions, Nashik has various types of MOSFET's. Check out our complete collection of MOSFET's.

• Low On-Resistance: Ensures minimal power loss and heat generation

• High Voltage Capability: Maximum drain-source voltage of -100V

• High Current Capacity: Can handle up to -6.6A continuous drain current

• Enhanced Switching Performance: Optimized for high-speed and efficient operation

• TO-220 Package: Robust design with excellent thermal dissipation properties

• Reverse Polarity Protection: Typical for P-channel MOSFET applications

Specifications of FQU8P10 P CHANNEL MOSFET 100 V 6.6A

• Type: P-Channel MOSFET

• Maximum Drain-Source Voltage: -100V

• Maximum Continuous Drain Current: -6.6A

• Maximum Power Dissipation: 63W

• Gate Threshold Voltage: -2V to -4V

• Maximum Gate-Source Voltage: ±20V

• Operating Temperature Range: -55°C to +175°C

Applications of FQU8P10 P CHANNEL MOSFET 100 V 6.6A

• Power Supply Circuits: Ideal for DC-DC converters and switching regulators

• Load Switching: Effective for applications requiring high-side switching

• Motor Control: Used in speed controllers for motors in industrial and consumer electronics

• Battery Management: Suitable for battery-powered devices to enhance energy efficiency

• Inverters: Reliable performance in inverter circuits for renewable energy systems

• General Purpose Power Switching: Versatile for various switching applications in electronics

Package Includes

      1 x FQU8P10 P CHANNEL MOSFET 100 V 6.6A
