GAL26V12C High Performance E2CMOS PLD Generic Array Logic TM IC

GAL26V12C High Performance E2CMOS PLD Generic Array Logic TM IC

The GAL26V12, at 7.5ns maximum propagation delay time, combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest performance available of any 26V12 device on the market. E2 technology offers high speed (<100ms) erase times, providing the ability to reprogram or reconfigure the device quickly and efficiently. The generic architecture provides maximum design flexibility by allowing the Output Logic Macro cell (OLMC) to be configured by the user. The GAL26V12 is fully function/fuse map/parametric compatible with other 26V12 devices. Unique test circuitry and reprogrammable cells allow complete AC, DC, and functional testing during manufacture. As a result, LATTICE is able to guarantee 100% field programmability and functionality of all GAL® products. LATTICE also guarantees 100erase/rewrite cycles.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• HIGH PERFORMANCE E2 CMOS® TECHNOLOGY— 7.5 ns Maximum Propagation Delay


• LOW POWER CMOS — 90 mA Typical Icc


• E 2 CELL TECHNOLOGY — Reconfigurable Logic


• High Speed Electrical Erasure (<100ms)


• TWELVE OUTPUT LOGIC MACROCELLS— Maximum Flexibility for Complex Logic Design


• PRELOAD AND POWER-ON RESET OF REGISTERS — 100% Functional Testability


Specifications of GAL26V12C High Performance E2CMOS PLD Generic Array Logic TM IC

• Technology: Electrically Erasable CMOS (E2CMOS).


• Number of Macrocells: 12 macrocells for configurable logic.


• Input Pins: 12 inputs, with the ability to configure them as logic inputs or registered inputs.


• Output Pins: Up to 12 programmable outputs.


• Speed Grade: Available with speeds as low as 7.5 ns propagation delay (GAL26V12C-7).


• Programming: Electrically erasable, allowing for re-programmability up to 1000 erase/write cycles.


• Operating Voltage (Vcc): 5V ±10%.


• Power Dissipation: Typically 165 mW.


Package Includes

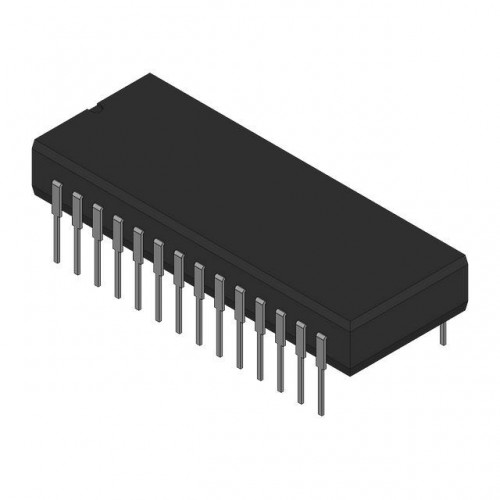

• 1 x GAL26V12C High Performance E2CMOS PLD Generic Array Logic TM IC
