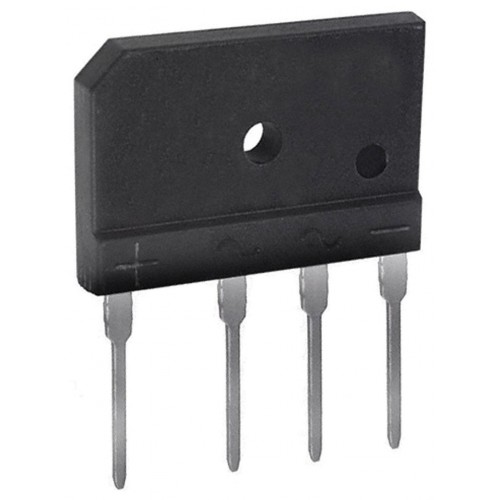

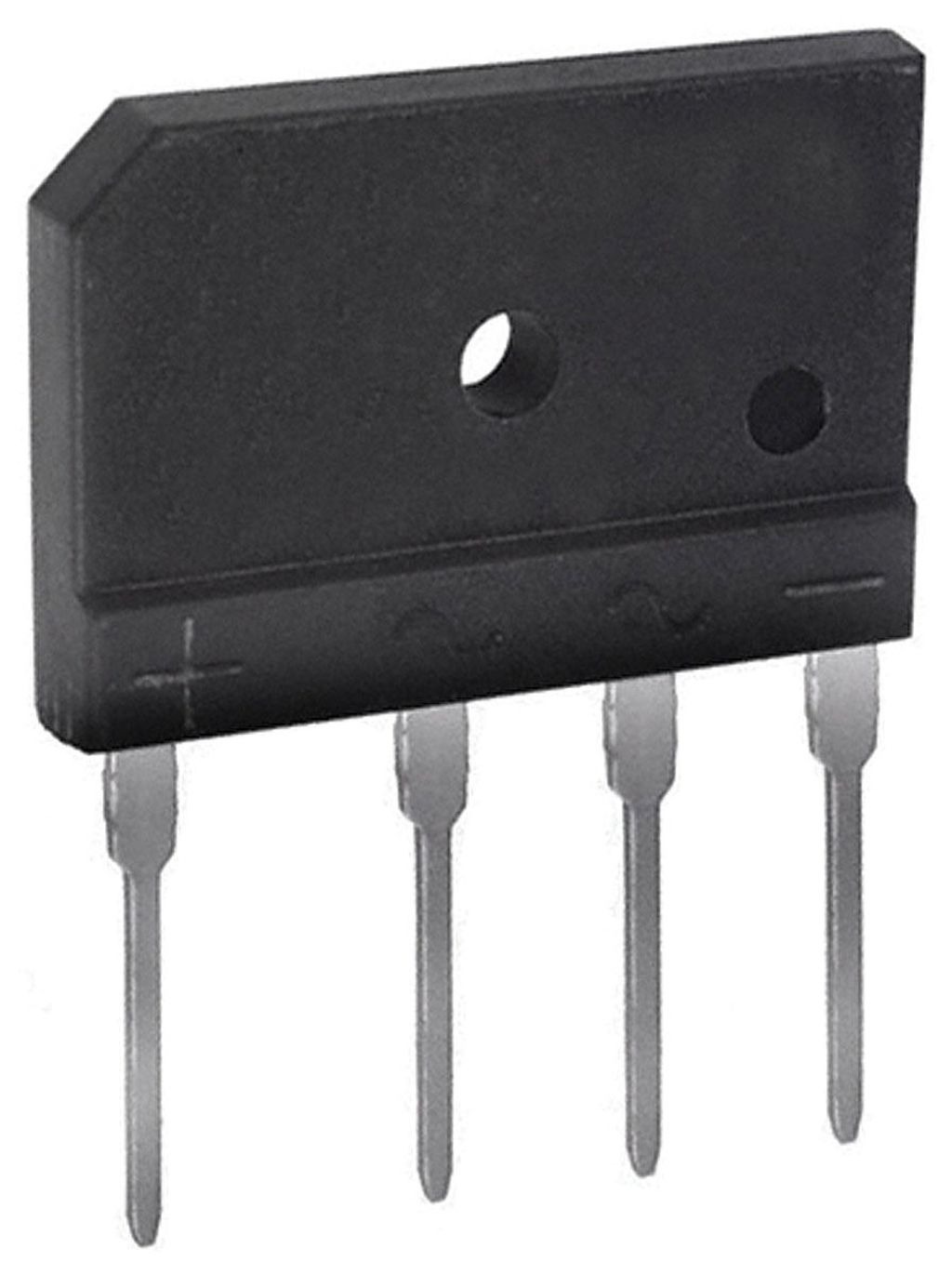

GBJ5010 1000V, 50A Single Phase Bridge Rectifier

GBJ5010 1000V, 50A Single Phase Bridge Rectifier

A Single Phase Bridge Rectifier is the GBJ5010. This IC can be utilized for a variety of applications because its maximum input AC RMS voltage is 700V. This IC can withstand a maximum average current of about 50A. This IC features a low forward voltage loss of 1.1V and a reverse breakdown value of 1000V. It is highly efficient and can handle 400 A of surge current. This can be a decent option if you're seeking for a small IC for rectification applications. The uninterruptible power supply, led and LCD TVs, audio amplifiers, and radios are the principal applications for this single phase bridge rectifier.

DNA solutions, Nashik has various types of Bridge Rectifier's. Check out our complete collection of Bridge Rectifier's.

• Rating to 1000V PRV

• Ideal for printed circuit board

• Low forward voltage drop, high current capability

• Reliable low cost construction utilizing molded plastic  technique results in inexpensive product

Specifications of GBJ5010 1000V, 50A Single Phase Bridge Rectifier

• Model - GBJ5010

• Type - Bridge Rectifier Diode

• Working Peak Reverse Voltage - 1000 V

• RMS Reverse Voltage VR(RMS) - 700 V

• Maximum DC Blocking Voltage - 1000V

• Average Forward Rectified Output Current - 50A

• Peak Reverse Current @ 25°C - 10µA

• Operating and Storage Temperature Range - -40°C TO 150°C
