  • GPS Patch Antenna with UFL Connector (25x25x05mm)

Product Images are shown for illustrative purposes only and may differ from actual product.

GPS Patch Antenna with UFL Connector (25x25x05mm)


Write a review | 0 reviews

  • Stock: 30
  • SKU: 7603 | DAH407
  • Rs. 132.40 (inc GST)
    Rs.112.20 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

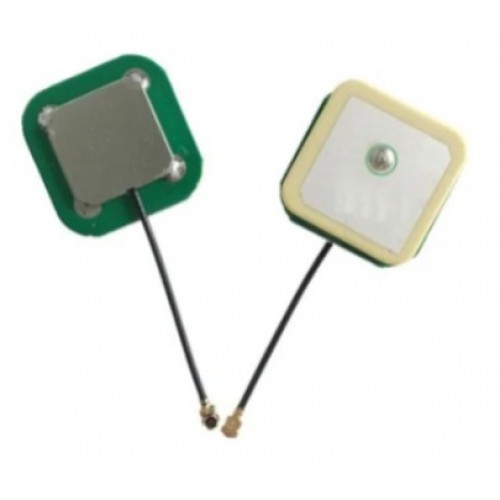

GPS Patch Antenna with UFL Connector (25x25x05mm)

GPS Patch Antenna with UFL Connector (25x25x05mm)

A GPS Patch Antenna with UFL Connector (25x25x5mm) is a compact antenna module designed for GPS applications, particularly in embedded systems and compact devices. The UFL (IPEX) connector allows for easy integration with a variety of GPS modules, and its patch form factor is optimized for high performance in a small footprint. Equipped with a UFL (IPEX) connector, enabling it to be used in compact designs where a small, robust connection is needed. Specifically designed to capture GPS L1 band signals, typically centered around 1575.42 MHz, suitable for various GPS-based applications.

DNA solutions, Nashik has various types of Antenna's. Check out our complete collection of Antenna's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of GPS Patch Antenna with UFL Connector (25x25x05mm)

  • Compact Size: 25x25x5mm, suitable for space-constrained applications.

  • Center Frequency: Optimized for GPS L1 frequency, ensuring strong signal capture.
  • High Gain: Ensures a strong signal reception even in low-signal environments.
  • Stable Performance: Ceramic patch design enhances signal consistency and quality.

  • UFL Connector: Facilitates easy integration with various GPS modules and embedded systems.

Specifications of GPS Patch Antenna with UFL Connector (25x25x05mm)

  • Frequency: 1575.42 MHz (GPS L1)
  • Size: 25mm x 25mm x 5mm
  • Connector Type: UFL (IPEX)
  • Polarization: Right-Hand Circular Polarization (RHCP)
  • Gain: Typically around 3 DBI
  • VSWR: ≤ 2.0 (indicates low signal reflection for better performance)
  • Impedance: 50 Ohms

    Package Includes

    • 1 x GPS Patch Antenna with UFL Connector (25x25x05mm)

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
