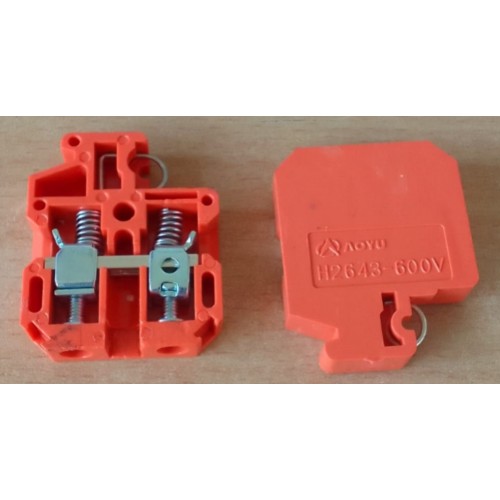

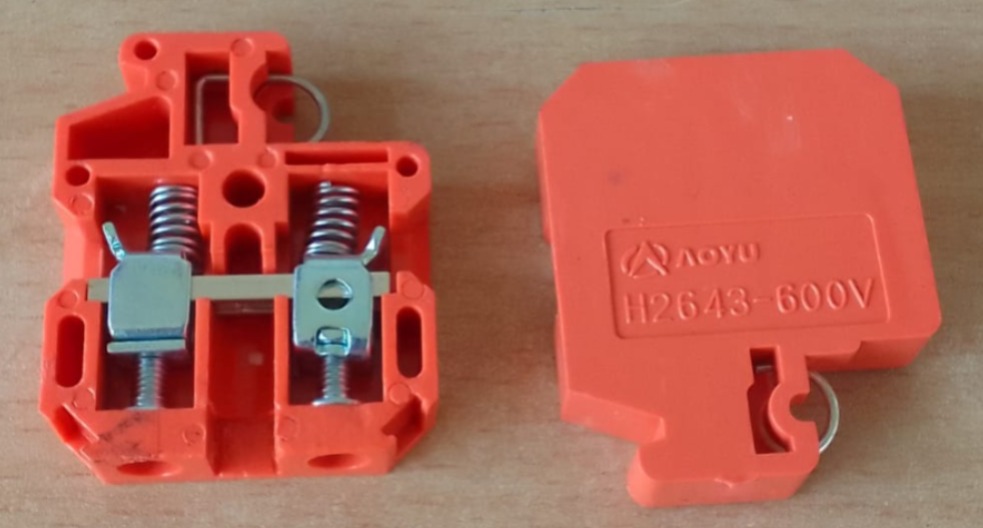

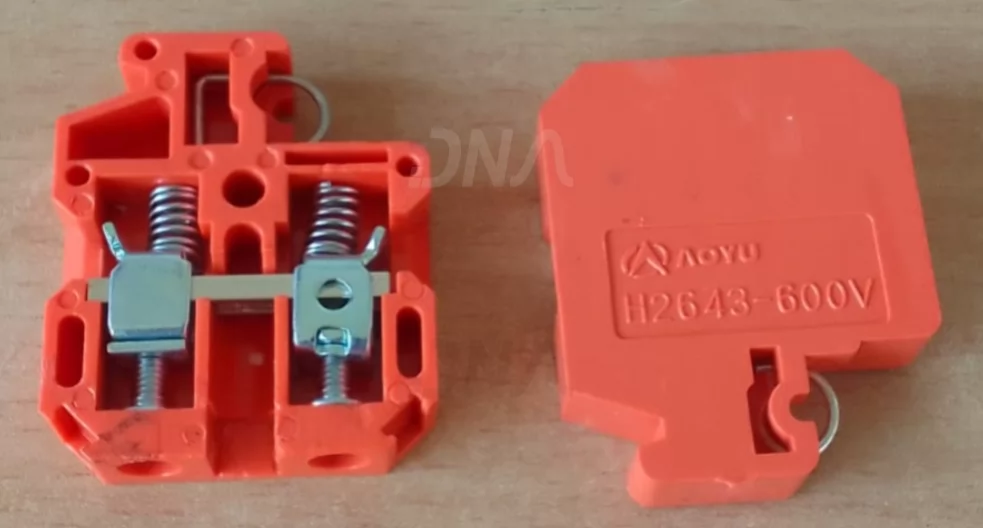

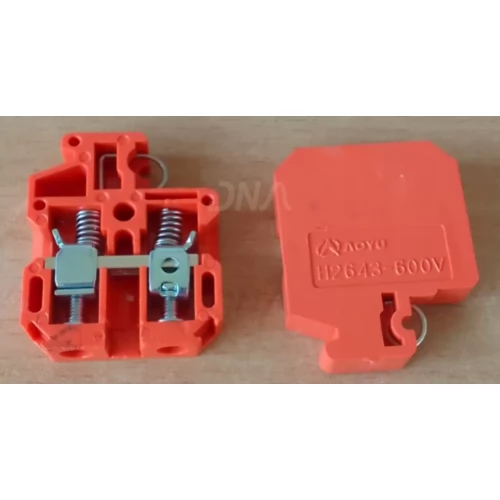

H2643-600V High Voltage Electric Connector

 H2643-600V High Voltage Electric Connector

The H2643-600V is a high-voltage electrical connector designed for industrial and power applications where secure, high-current connections are necessary. This connector is typically rated for up to 600V and is used in a variety of electrical systems, such as power distribution, heavy machinery, and high-power electronics.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of  Connector's.

• High Voltage Handling: Rated for operation at up to 600V, making it suitable for high-power applications.


• Durable Construction: Designed to withstand industrial environments, with materials that resist wear, corrosion, and high temperatures.


• Secure Connections: Offers reliable connections with safety features to prevent accidental disconnections or short circuits.


• High Current Capacity: Able to handle significant current loads typically found in power distribution systems.


• Insulation: High-quality insulation materials used to protect against electrical shorts and maintain safety under high-voltage conditions.


Specifications of  H2643-600V High Voltage Electric Connector

• Current Rating: Typically rated for high current, though the exact value can vary based on the specific variant (e.g., 50A, 100A).


• Contact Material: Often made from materials like copper or copper alloys with gold or silver plating for enhanced conductivity and corrosion resistance.


• Insulation Resistance: Typically rated at >1000MΩ to ensure electrical isolation.


• Operating Temperature: Ranges from -40°C to 105°C or higher, depending on the application and variant.


• Connector Type: Available in male and female configurations for easy mating and secure locking mechanisms.


• Mounting Type: Can come in panel-mount or cable-mount versions, depending on application requirements.


Package Includes

• 1 x  H2643-600V High Voltage Electric Connector
