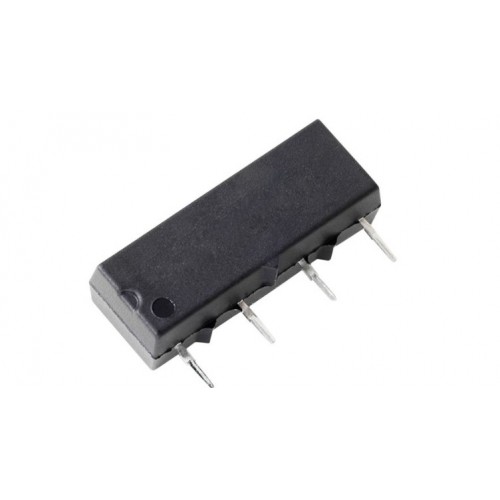

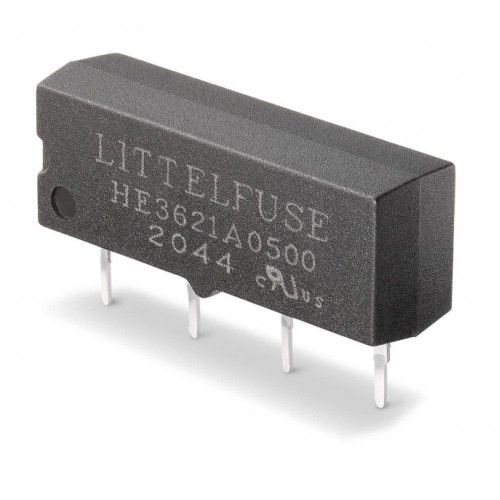

HE3621A0500 Reed Relay

HE3621A0500 Reed Relay

The HE3621A0500 is a high-performance reed relay designed for switching applications requiring fast response times, long operational life, and low power consumption. This relay consists of a hermetically sealed reed switch enclosed in a compact package with an integrated coil for actuation. It operates using a low-voltage DC coil and is known for its reliable switching capabilities in low-current and high-voltage circuits.

DNA solutions, Nashik has various types of Relay's. Check out our complete collection of Relay's.

• Compact Design: Small form factor for space-constrained applications

• Low Power Consumption: Efficient operation with minimal power requirements

• Fast Switching Speed: Rapid response times due to the reed switch mechanism

• High Reliability: Long mechanical and electrical lifespan

• Hermetically Sealed Contacts: Protection from environmental factors such as dust, moisture, and contaminants

Specifications of HE3621A0500 Reed Relay

• Coil Voltage: 5V DC

• Coil Resistance: Approx. 500Ω

• Contact Configuration: Single Pole Single Throw (SPST) Normally Open (NO)

• Operate Time: Typically < 1ms

• Release Time: Typically < 1ms

• Insulation Resistance: ≥ 10⁹Ω

• Dielectric Strength: > 1500V DC

• Operating Temperature Range: -40°C to +85°C

Applications of HE3621A0500 Reed Relay

• Test and Measurement Equipment

• Telecommunication Systems

• Industrial Automation

• Medical Devices

• Security Systems

Package Includes

      1 x HE3621A0500 Reed Relay
