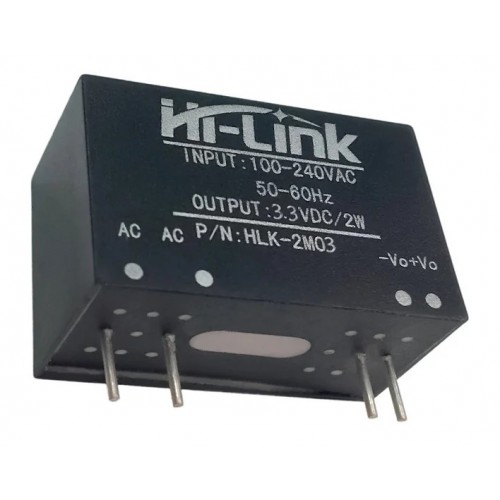

HLK 2M03 3.3V/2W AC to DC Switch Power Supply Module

HLK 2M03 3.3V/2W AC to DC Switch Power Supply Module

The HLK-2M03 3.3V/2W Switch Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 3.3V DC from  100V AC – 240V AC and has a power rating of 2 Watt. This makes it perfect for small projects that need a 3.3 volt supply from mains. There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc. The 2W ultra-small series power supply module is a small volume, high-efficiency power module for customers designed by Hi-Link. It has the advantage of the global input range, low-temperature rise, low power consumption, high efficiency, high reliability, etc. It has been widely used in smart homes, automation control and other industries.

DNA solutions, Nashik has various types of HLK Module's. Check out our complete collection of  HLK Module's.

• Meet UL, CE requirements,


• Ultra-thin, ultra-small


• All voltage input (AC: 100 ~ 240V)


• Low ripple and low noise


• Output overload and short circuit protection


• High efficiency, high power density


• The product is designed to meet the requirements of the EMC and Safety Test


Specifications of HLK 2M03 3.3V/2W AC to DC Switch Power Supply Module

• Input Voltage: 90V to 264V AC (47Hz to 63Hz)

• Output Voltage: 3.3V DC


• Output Power: 2W


• Output Current: 600mA


• Efficiency: Up to 70%


• Ripple & Noise: ≤150mV


• Isolation Voltage: 3000V AC (between input and output)


Package Includes

• 1 x HLK 2M03 3.3V/2W AC to DC Switch Power Supply Module
