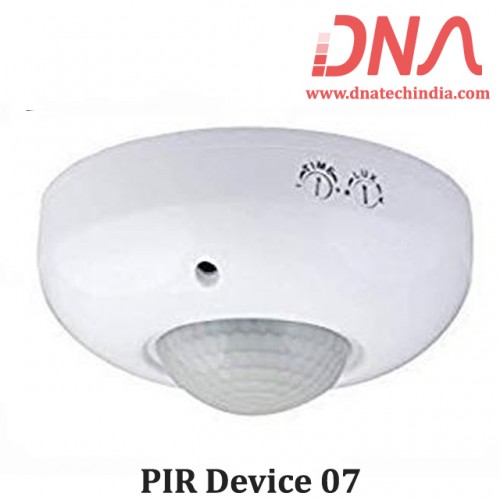

Ceiling Mount PIR Motion Sensor Switch 360 Degree 230 Volts (DNA-07)

360 Degree 230 Volts Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (DNA-07)

DNA-07 Series ceiling Mount PIR Motion Sensor has 360 degree view is good energy saving solution with easy installation. DNA-07 PIR Motion sensor have onboard adjustable Ambient light sensor so the lights can be turned ON only during the night time there by saving energy during day. You can have Delay adjustment from 10 Seconds - 7 Minutes and also has Adjustable Lux so turn on the lights only during the night not day.

Using the automatic control product of infrared technology,when people walk into the sensor range,and the sensor can detect the spectral change of the human body infrared ray,during this time,the switch will connect the load automatically until the person leaves the sensor range. Through the photosensitive control , it will not turn on the lights in the daytime or light environment, but also can be adjusted in any lighting environment sensing lights

This Ceiling Mount PIR Motion Sensor 360 degree Switch can be used with lamps, incandescent lamps (bulbs), old-fashioned fluorescent lamps, electronic fluorescent ring lamps, spotlights, transformers, small electrical appliances, and other all other appliance

DNA Solutions is an Electronic Components Shop dealing in various types of Electronic Components and Automation products. Check our complete list of Automation products.

Features of DNA-07 Ceiling Mount PIR Motion Sensor

• Power Source : 220-240 Volts/AC

• Detection Range : 360°

• Power Frequency : 50/60Hz

• DetecƟon Distance : 6m max(<24℃)

• Ambient Light : <3-2000LUX (adjustable)

• Working Temperature : -20~+40℃

• Time Delay : Min.10sec±3sec

• Max.7min±2min

• Working Humidity : <93%RH

• Power Consumption : approx. 0.5W

• Rated Load : Max.1200W (incandescent lamp)

• 300W (energy-saving lamp)

• Detection Moving Speed : 0.6-1.5m/s
