HX1204-E PROXIMITY SENSOR

HX1204-E PROXIMITY SENSOR

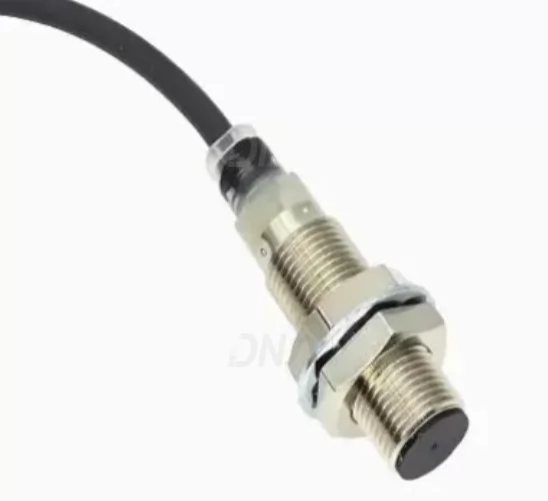

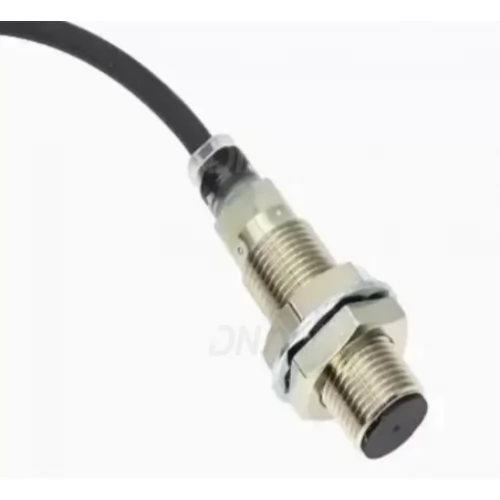

The HX1204-E Proximity Sensor is a high-performance inductive sensor specifically designed for non-contact detection of metallic objects. It operates by generating an electromagnetic field, and when a metallic object enters the sensing range, the sensor detects changes in this field and triggers an output signal. This sensor is robust, reliable, and ideal for applications requiring precision and durability in industrial environments. Its stainless-steel housing ensures resistance to mechanical stress, corrosion, and harsh operating conditions.

DNA solutions, Nashik has various types of Sensor's. Check out our complete collection of Sensor's.

• Sensing Distance: 4 mm

• Housing Diameter: M12

• Output Type: NPN Normally Closed (NC)

• Housing Material: Stainless Steel

• Connection Type: 2-meter cable

• Operating Temperature Range: -25°C to +70°C

• Protection Rating: IP67

Specifications of HX1204-E PROXIMITY SENSOR

• Rated Operating Distance: 4 mm

• Installation Type: Flush mounting

• Output Function: Normally Closed (NC)

• Supply Voltage: 10 to 32 VDC

• Maximum Output Current: 200 mA

• Maximum Switching Frequency: 500 Hz

Applications of HX1204-E PROXIMITY SENSOR

• Position Sensing: Detecting the presence or absence of metal components in automated systems

• Speed Monitoring: Measuring rotational speed by counting metallic gear teeth

• Object Detection: Identifying metal objects on conveyor systems

• Machine Safety: Serving as a limit switch to prevent mechanical over-travel

Package Includes

      1 x HX1204-E PROXIMITY SENSOR
