HY951180A RJ-45 Connector with Magnetics Module & LED

HY951180A RJ-45 Connector with Magnetics Module & LED

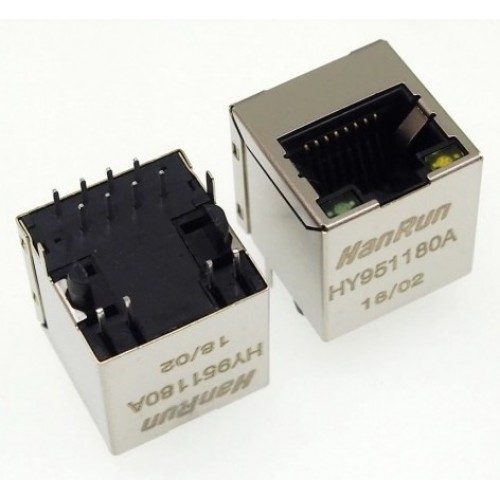

The HY951180A RJ-45 Connector is a compact and reliable network interface component designed for Ethernet connections, commonly used in network switches, routers, and PCs. This connector facilitates the transmission of data in wired network setups. The HY951180A is an 8-position 8-contact (8P8C) modular RJ-45 jack, primarily used for Ethernet over twisted-pair cables. It features a standard RJ-45 form factor that fits into a wide range of devices. It includes features like integrated LEDs for link and activity indication, helping to monitor network performance.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• Designed for Network Interface Card Application


• Meets or Exceeds IEEE802.3 standards including 350uH Min OCL with 8mA


• High performance for EMI suppression, Crosstalk and Return Loss


• Minimum 1500Vrms isolation per IEEE 2.3 requirement


• Minimize PCB space and Simplify PCB Layout


• Less magnetic components to place on PCB, Higher reliability and yields


Specifications of HY951180A RJ-45 Connector with Magnetics Module & LED

• Connector Type: RJ-45, 8P8C.

• Data Rate: Supports 10/100/1000 Mbps Ethernet transmission.

• LED Indicators: Green for link/activity, yellow for speed indication.

• Operating Temperature: Generally -40°C to 85°C.

• Shielding: EMI shielding to reduce electromagnetic interference and ensure stable data transfer.

• Mounting Type: Typically through-hole or surface-mount compatible.

Package Includes

• 1 x HY951180A RJ-45 Connector with Magnetics Module & LED
