IDT74FCT88915TT LOW SKEW PLL-BASED CMOS CLOCK DRIVER (WITH 3-STATE)

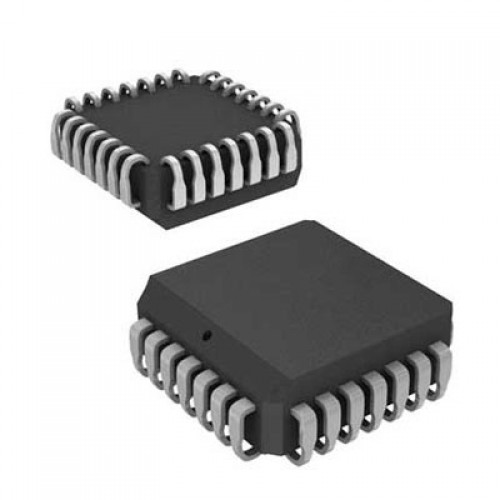

IDT74FCT88915TT IC

The IDT74FCT88915TT IC uses phase-lock loop technology to lock the frequency and phase of outputs to the input reference clock. It provides low skew clock distribution for high performance PCs and workstations. One of the outputs is fed back to the PLL at the FEEDBACK input resulting in essentially zero delay across the device. The IDT74FCT88915TT is an advanced clock driver that features low propagation delay and high output drive capability. It is designed to handle high-speed clock signals with minimal skew, ensuring synchronized operation across multiple components in a system. The device is built using advanced CMOS technology, which combines the high-speed performance of TTL logic with the low power consumption of CMOS.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• High-Speed Operation: The IC supports fast data rates, making it suitable for high-speed clock distribution in digital systems.


• Low Skew: Ensures minimal timing difference between output clock signals, critical for synchronized operations in high-performance applications.


• Low Propagation Delay: Provides fast signal transmission, which is essential for maintaining the integrity of clock signals in high-speed circuits.


• Multiple Outputs: The IC typically features multiple clock outputs, allowing it to drive several components simultaneously with a single input clock.


• CMOS Technology: Combines the high speed of TTL logic with the low power consumption of CMOS, resulting in efficient and reliable operation.


Specifications of IDT74FCT88915TT IC

• Input Voltage Range (Vcc): 4.75V to 5.25V


• Input Threshold Voltage: Typically 1.5V (for TTL logic levels)


• Output Voltage (Voh): 2.4V minimum at Ioh = -24mA


• Output Voltage (Vol): 0.5V maximum at Iol = 48mA


• Propagation Delay: Typically 2.5ns to 5ns, depending on load conditions


• Output Skew: Less than 500ps, ensuring synchronized clock outputs


Package Includes

• 1 x IDT74FCT88915TT IC
