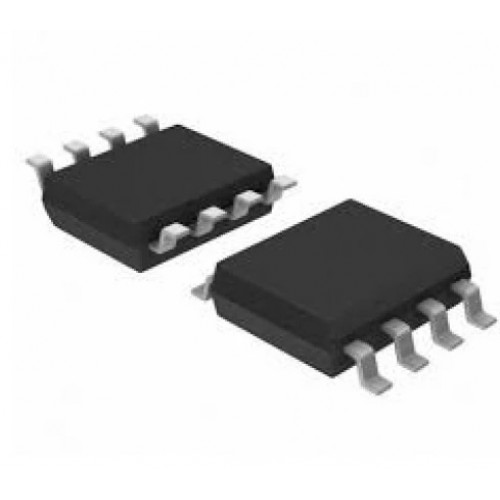

JRC4558D Dual Operational Amplifier IC

JRC4558D Dual Operational Amplifier IC

The JRC4558D is a widely used dual operational amplifier integrated circuit, designed for a variety of analog applications. It features two high-performance op-amps in a single package, offering excellent linearity and low noise performance. It is commonly used in audio processing circuits, active filters, and signal conditioning applications.

DNA solutions, Nashik has various types of Amplifier IC's. Check out our complete collection of Amplifier IC's.

• Dual Operational Amplifiers: Contains two independent op-amps in one IC

• High Gain: Voltage gain is high, suitable for amplification tasks

• Low Noise: Ideal for audio and precision signal applications

• Wide Power Supply Range: Operates on ±4V to ±18V dual supply or 8V to 36V single supply

• Internal Frequency Compensation: Eliminates the need for external compensation capacitors

• High Input Impedance: Ensures minimal current draw from the source

• Short-Circuit Protection: Enhances reliability in various applications

Specifications of JRC4558D Dual Operational Amplifier IC

• Input Offset Voltage: Typically 2mV, max 6mV

• Input Bias Current: 50nA typical

• Voltage Gain: 100dB typical

• Slew Rate: 0.5V/μs

• Input Impedance: 1MΩ (minimum)

• Supply Voltage: ±4V to ±18V

• Quiescent Current: 3mA typical per channel

• Output Voltage Swing: ±12V (with ±15V supply)

• Output Current: ±10mA

Applications of JRC4558D Dual Operational Amplifier IC

• Audio Equipment

• Signal Processing

• Control Systems

• General Analog Applications

Package Includes

      1 x JRC4558D Dual Operational Amplifier IC
