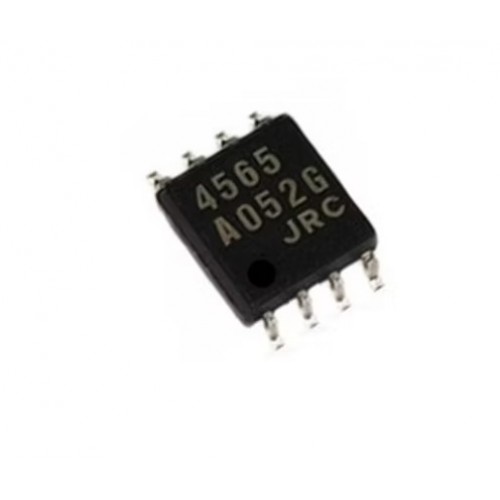

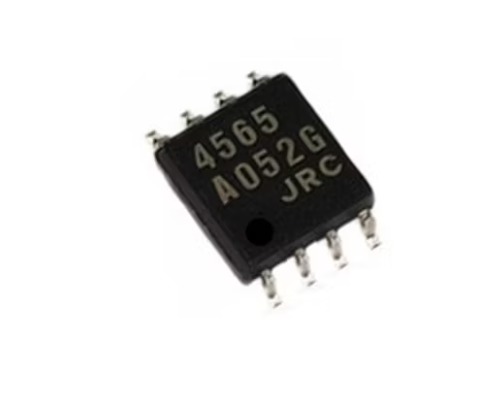

JRC4565 Operational Amplifier IC

JRC4565 Operational Amplifier IC

The JRC4565 is a high-gain, internally frequency-compensated dual operational amplifier designed to operate from a single power supply or dual power supply over a wide range of voltages. It is primarily optimized for low noise, making it ideal for audio-related applications. The IC is suitable for both analog signal processing and general-purpose amplification tasks.

DNA solutions, Nashik has various types of Amplifier IC's. Check out our complete collection of Amplifier IC's.

• Low Noise Characteristics: Minimal noise generation, making it ideal for audio signal processing

• Wide Operating Voltage Range: Compatible with both single and dual power supplies

• High Input Impedance: Ensures minimal loading of input signals

• Internally Compensated: Stable operation without requiring external compensation components

• Dual Op-Amp Configuration: Provides two independent operational amplifiers in one package

Specifications of JRC4565 Operational Amplifier IC

• Input Offset Voltage: Typically ±1 mV

• Input Bias Current: Typically 50 nA

• Input Impedance: High (typical > 1 MΩ)

• Gain Bandwidth Product (GBW): 3 MHz (typical)

• Slew Rate: 1 V/μs (typical)

• Output Voltage Swing: Near rail-to-rail for a wide range of loads

• Operating Temperature Range: -40°C to +85°C

Applications of JRC4565 Operational Amplifier IC

• Audio Signal Processing

• Filter Circuits

• Instrumentation Amplifiers

• Sensor Signal Conditioning

• Mixing Consoles

Package Includes

      1 x JRC4565 Operational Amplifier IC
