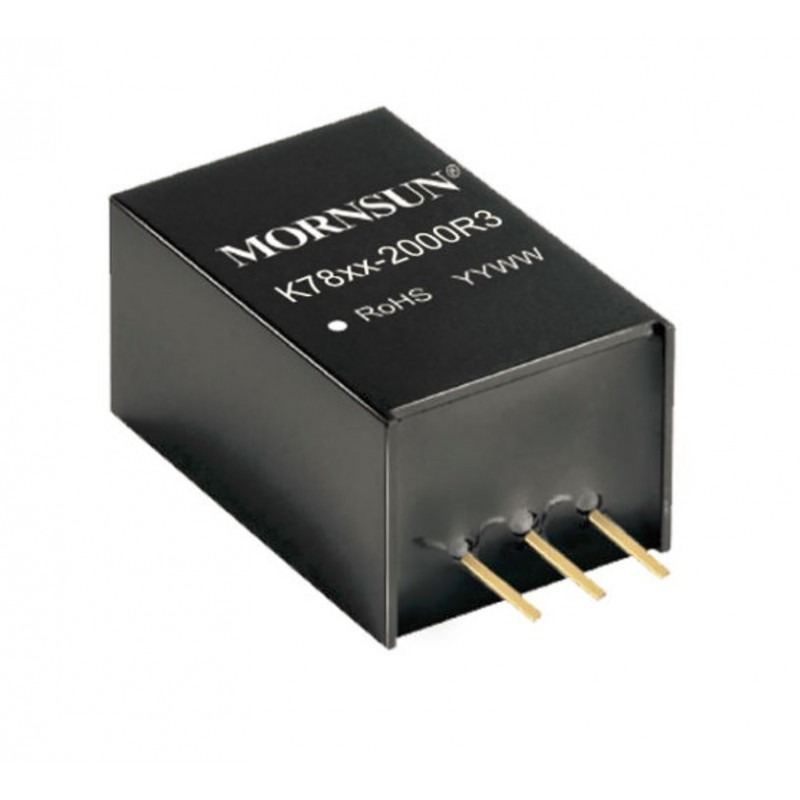

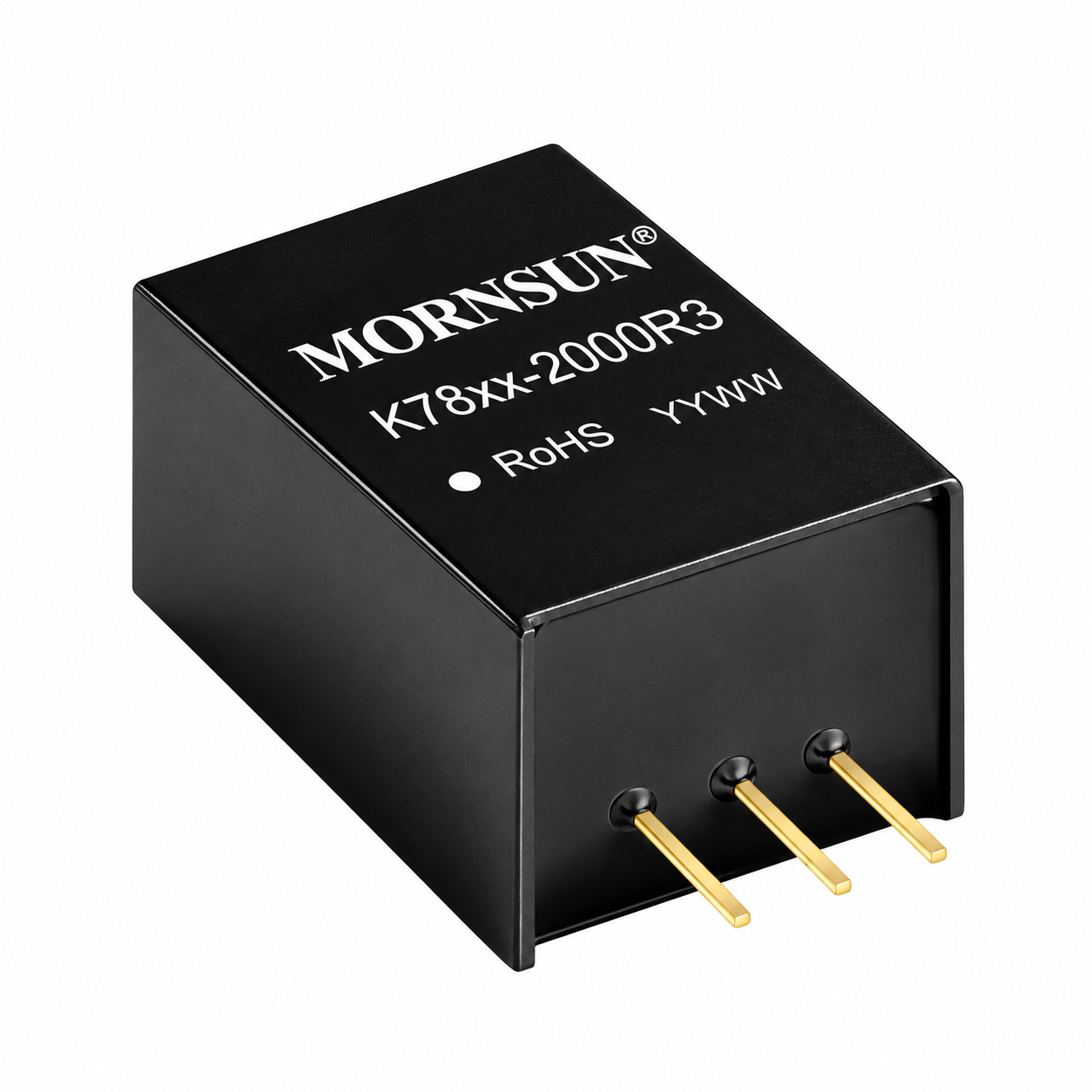

K7805-2000R3 Mornsun 24V to 5V DC-DC Converter 2W Power Supply Module

K7805-2000R3 Mornsun 24V to 5V DC-DC Converter 2W Power Supply Module

The K7805-2000R3 is part of Mornsun's K78 series, which provides efficient and reliable voltage conversion with minimal heat generation, eliminating the need for traditional heat sinks. This module features a non-isolated buck converter that can step down a 24V input voltage to 5V at 2A, making it suitable for industrial, communication, and IoT applications. It is a drop-in replacement for traditional 7805 linear regulators, offering superior efficiency and space-saving advantages.

DNA solutions, Nashik has various types of Mornsun's. Check out our complete collection of  Mornsun's.

• High Efficiency: Achieves up to 96% efficiency, significantly reducing power loss and heat generation.


• Wide Input Voltage Range: Supports input voltages from 8V to 36V, making it compatible with various industrial power sources.


• No Heat Sink Required: The module's high efficiency eliminates the need for external heat sinks, making it compact and easier to integrate.


• Compact Size: Small footprint with dimensions of 17.5 x 11.5 x 8.5 mm, ideal for space-constrained applications.


• High Reliability: Provides built-in protections for short circuit, overcurrent, and over-temperature, ensuring stable operation in challenging environments.


• Low Ripple and Noise: Designed with low output ripple and noise, improving the performance of sensitive circuits.


Specifications of K7805-2000R3 Mornsun 24V to 5V DC-DC Converter 2W Power Supply Module

• Input Voltage Range: 8V to 36V DC


• Output Voltage: 5V DC


• Output Current: 2A


• Output Power: 2W


• Efficiency: Up to 96%


• Ripple & Noise: 50mVp-p max


• Load Regulation: ±0.4%


Package Includes

• 1 x K7805-2000R3 Mornsun 24V to 5V DC-DC Converter 2W Power Supply Module
