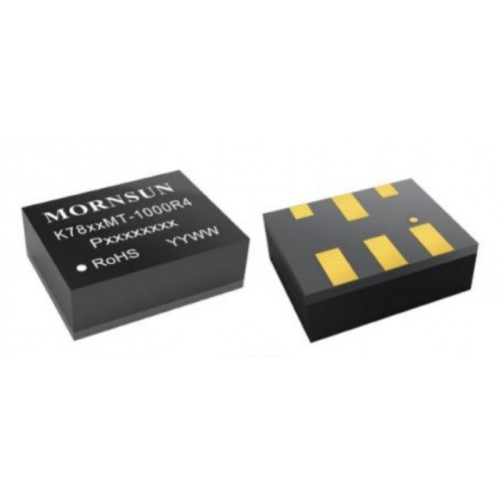

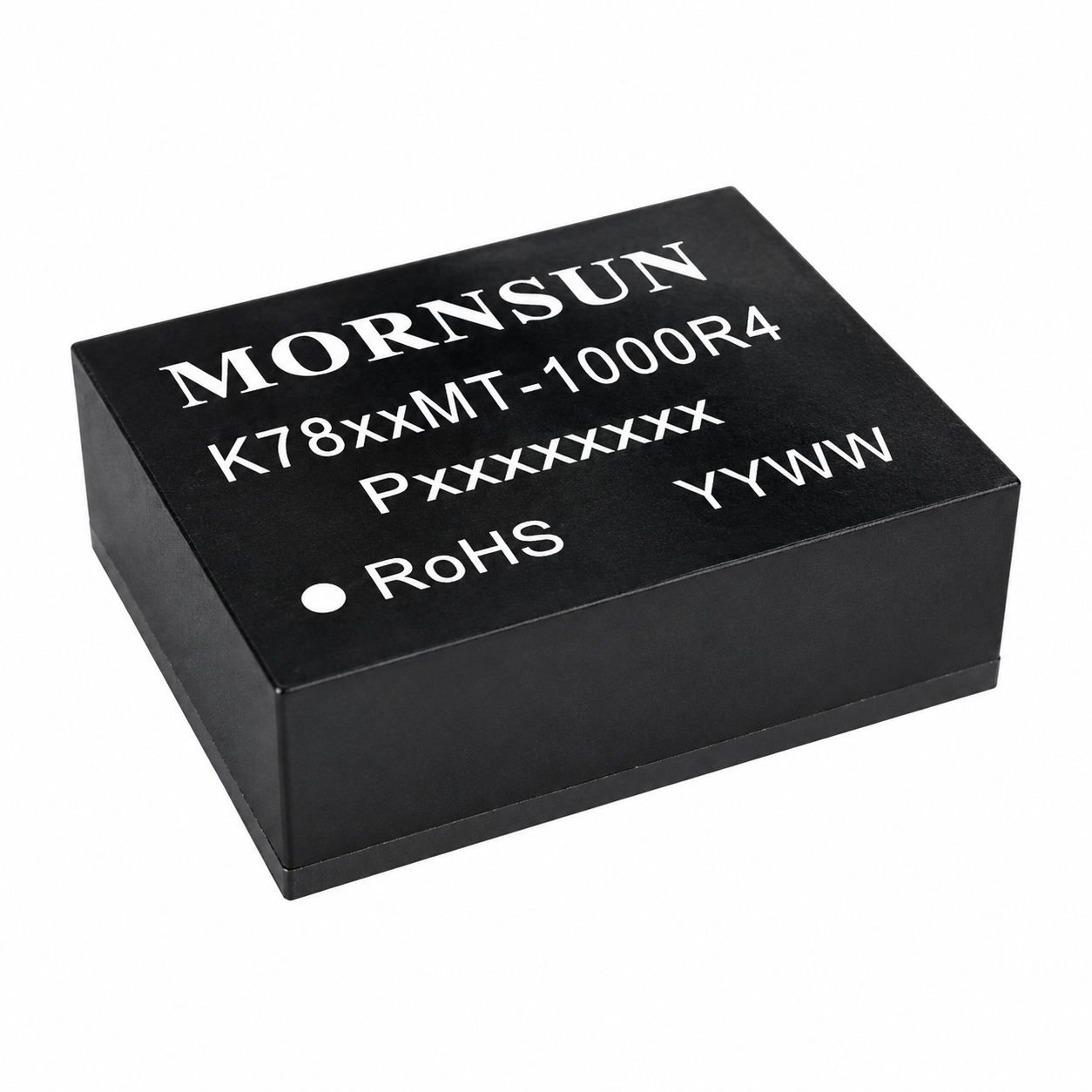

K7805MT-1000R4 Mornsun 5V Output DC-DC Converter

K7805MT-1000R4 Mornsun 5V Output DC-DC Converter

The K7805MT-1000R4 is a 5V output DC-DC converter module manufactured by Mornsun. It is part of the K78 series of non-isolated switching regulators, designed to replace traditional linear regulators like the 7805, offering high efficiency and compact size. It is particularly suitable for applications where space, heat dissipation, and energy efficiency are critical.

DNA solutions, Nashik has various types of Mornsun's. Check out our complete collection of Mornsun's.

• High Efficiency: Up to 96% efficiency, significantly reducing power loss and heat compared to linear voltage regulators.


• Pin Compatibility: Direct replacement for traditional 7805 linear regulators (3-pin configuration).


• Low Ripple & Noise: Output ripple and noise are minimized, making it suitable for sensitive electronics.


• Wide Input Voltage Range: Supports a broad input range of 7V to 36V, making it versatile for different power sources.


• Overcurrent & Short Circuit Protection: Built-in protection features to prevent damage from overload conditions.


• Thermal Shutdown Protection: Ensures safe operation by protecting the converter from overheating.


Specifications of K7805MT-1000R4 Mornsun 5V Output DC-DC Converter

• Input Voltage: 7V to 36V DC.


• Output Voltage: 5V DC.


• Output Current: Up to 1A.


• Efficiency: Up to 96%.


• Output Ripple & Noise: ≤20mV (measured at 20MHz bandwidth).


• Switching Frequency: 550kHz (typical).


• No Load Input Current: 0.2mA (typical).


• Line Regulation: ±0.4% (typical).


Package Includes

• 1 x K7805MT-1000R4 Mornsun 5V Output DC-DC Converter
