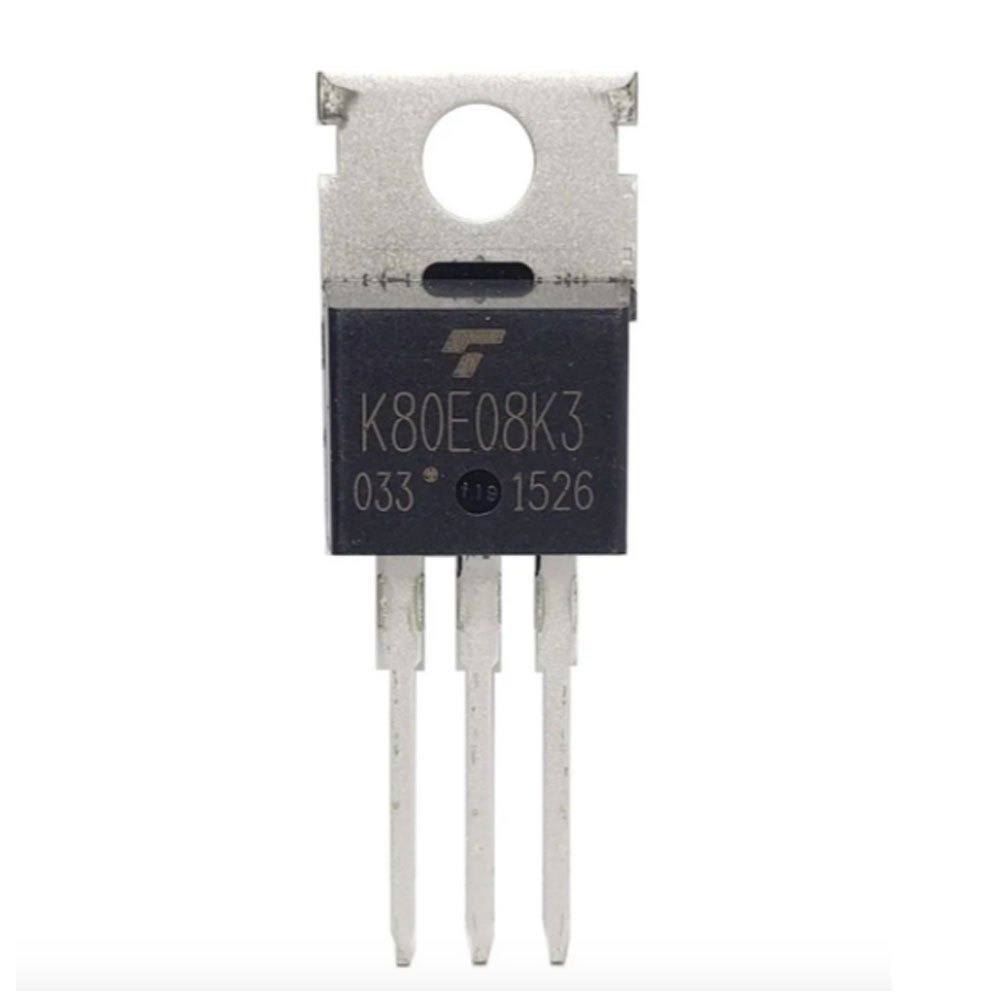

K80E08K3 36V-80A High Power N-Channel MOSFET

K80E08K3 36V-80A High Power N-Channel MOSFET

The K80E08K3 is an N-channel Power MOSFET designed for high-efficiency switching applications. This device is commonly used in power supplies, motor control, and other high-power circuits due to its excellent switching characteristics and low on-state resistance. N-Channel Power MOSFET 80V Drain-Source Voltage (Vds)High current handling capability, designed for demanding applications. Commonly available in a TO-220 package, suitable for through-hole mounting in power circuits.

DNA solutions, Nashik has various types of MOSFET's. Check out our complete collection of MOSFET's.

• Low Rds(on): The K80E08K3 offers a low on-resistance, which minimizes power losses during operation, leading to greater efficiency in power circuits.


• High Current Capability: Designed to handle significant current, making it ideal for high-power applications such as motor drives and power supplies.


• Fast Switching Performance: Optimized for fast switching speeds, improving overall efficiency in switching applications like DC-DC converters.


• Avalanche Ruggedness: The MOSFET is built to withstand high-voltage spikes and can operate in harsh electrical environments.


• Thermal Performance: The package design and material help dissipate heat effectively, which allows the MOSFET to handle high power levels without thermal issues.


Specifications of K80E08K3 36V-80A High Power N-Channel MOSFET

• Vds (Drain-Source Voltage): 80V

• Id (Continuous Drain Current): Typically around 80-100A (depending on the specific model and conditions)

• Rds(on) (On-state Resistance): Low, typically in the milliohm range, ensuring minimal conduction losses

• Vgs (Gate-Source Voltage): ±20V

• Total Gate Charge (Qg): Low gate charge for efficient switching

• Power Dissipation (Pd): High power dissipation capability (typically in the hundreds of watts)

• Operating Temperature Range: -55°C to +175°C, ensuring reliable operation in various environments

Package Includes

• 1 x K80E08K3 36V-80A High Power N-Channel MOSFET
