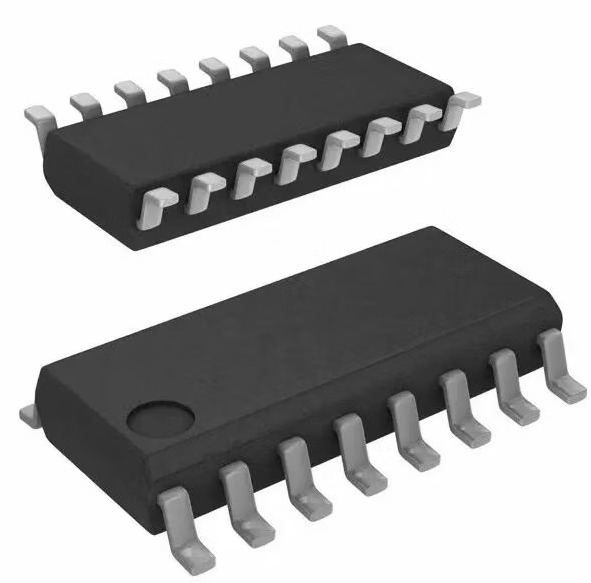

KA3524 Pulse Width Modulation (PWM) SMD IC
- Stock: Out Of Stock NotInStock
- SKU: 8590 | DAH884
-
Rs.
81.42 (inc GST)
Rs.69.00 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |
KA3524 Pulse Width Modulation (PWM) SMD IC
KA3524 Pulse Width Modulation (PWM) SMD IC
The KA3524 is a Pulse Width Modulation (PWM) control circuit designed for fixed-frequency switching regulators and DC-DC converters. It integrates all essential control functions, including error amplification, oscillator, pulse-width modulation, and output switching transistors. The KA3524 is widely used in switching power supplies and inverter circuits due to its high efficiency and reliability.
DNA solutions, Nashik has various types of PWM IC's. Check out our complete collection of PWM IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of KA3524 Pulse Width Modulation (PWM) SMD IC
- Complete PWM control circuit in a single IC
- Internal 5V reference voltage
- Built-in oscillator with adjustable frequency
- Error amplifier for precise voltage regulation
- Dual alternating outputs for push-pull configurations
- Current limiting and shutdown capability
- Output transistor for direct driving external switches
- Thermal shutdown protection
- Complete PWM control circuit in a single IC
- Internal 5V reference voltage
- Built-in oscillator with adjustable frequency
- Error amplifier for precise voltage regulation
- Dual alternating outputs for push-pull configurations
- Current limiting and shutdown capability
- Output transistor for direct driving external switches
- Thermal shutdown protection
Specifications of KA3524 Pulse Width Modulation (PWM) SMD IC
- Operating Voltage: 8V to 40V
- Reference Voltage: 5V (±1%)
- Oscillator Frequency: Adjustable (up to 300 kHz)
- Output Drive Current: 200mA per channel
- Total Power Dissipation: 1W (max)
- Operating Temperature: -25°C to +85°C
- Package Type: SMD/SOIC-16
- Operating Voltage: 8V to 40V
- Reference Voltage: 5V (±1%)
- Oscillator Frequency: Adjustable (up to 300 kHz)
- Output Drive Current: 200mA per channel
- Total Power Dissipation: 1W (max)
- Operating Temperature: -25°C to +85°C
- Package Type: SMD/SOIC-16
Applications of KA3524 Pulse Width Modulation (PWM) SMD IC
- Switching Power Supplies
- DC-DC Converters
- Inverters and UPS Systems
- Battery Chargers
- Motor Control Circuits
- Voltage Regulation and Power Management
- Switching Power Supplies
- DC-DC Converters
- Inverters and UPS Systems
- Battery Chargers
- Motor Control Circuits
- Voltage Regulation and Power Management
Package Includes
1 x KA3524 Pulse Width Modulation (PWM) SMD IC
